Product Details
Place of Origin: China
Brand Name: GET
Certification: ISO CE
Document: Product Brochure PDF
Payment & Shipping Terms
Price: Negotiable
Delivery Time: 15-20 workdays
Payment Terms: LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Rated Frequency: |
50hz 60hz |
Rated Output(kw): |
1.8 2.0/ 2.5 2.8/ 4.8 5.0/ 5.0 5.2/ 6.0 6.2/ 6.3 6.8 |
Max Output (kw): |
2.0 2.2/ 2.7 3.0/ 5.2 5.5/ 5.5 5.7/ 6.6 6.8/ 6.9 7.4 |
Rated Voltage (V): |
220V Or As Request |
Rated Currency (A): |
7.8 8.7/ 11.3 12.7/ 20.5 22.7/ 22.7 23.6/ 27.2 28.2/ 28.6 30.9 |
Rated Rotation Speed (r/min): |
3000 3600 |
Phase No.: |
Single Phase |
Power Factor: |
1 |
Insulation Grade: |
F |
Pole Number: |
2 |
Excitation Mode: |
Self-excitation & Constant Voltage (AVR) |
Panel Type: |
General Panel |
Receptacle: |
Two Receptacles |
Connection Pole: |
Without |
DC 12V Output: |
Connection Pole Output |
Overall Dmension(mm): |
690x480x560/ 690x480x560/ 730x495x630/ 730x495x630/ 730x495x630/ 730x495x655 |
Dry Weight (kg): |
53 70 100 105 110 115 |
Working Assorting Weight (kg): |
66 83 110 115 120 125 |
Noise Level (7m): |
77 DB |
Structure Type: |
Open Type |
Engine Type: |
Single Cylinder, Vertical, Four Stroke, Direct Injection, Air-cooled |
Cylinder No. -bore X Stroke (mm): |
1-73x55/ 1-78x62/ 1-86x72/ 1-88x75/ 1-92x75/ 1-95x75 |
Displacement(ml): |
247 296 418 456 498 531 |
Rated Power: |
2.5/3000-2.8/3600. 3.68/3000-4/3600. 5.7/3000-6.3/3600. 6.5/3000-7.2/3600. 7.6/3000-8.2/3600. 8.1/3000-8.7/3600 |
Compression Ratio: |
20:01, 19:01 |
Lubrication System: |
Pressure Splashed |
Fuel Type: |
0#(summer)-10#(winter)-35#(chillness) Diesel |
Lube Oil Brand: |
CD Grade Or SAE10W-30, 15W-40 |
Lube Capacity (L): |
0.75 1.1 1.65 |
Starting Motor Capacity: |
12V 0.9KW/ 12V 1.2KW |
Charging Generator Capacity: |
12V 8.3A |
Battery Capacity: |
12V 20Ah/ 12V 30Ah |
Fuel Consumption (g/kw*h): |
≤280 |
Fuel Tank Capacity (L): |
13.5 |
Continuous Running Time: |
10h 8h 7h |
Rated Frequency: |
50hz 60hz |
Rated Output(kw): |
1.8 2.0/ 2.5 2.8/ 4.8 5.0/ 5.0 5.2/ 6.0 6.2/ 6.3 6.8 |
Max Output (kw): |
2.0 2.2/ 2.7 3.0/ 5.2 5.5/ 5.5 5.7/ 6.6 6.8/ 6.9 7.4 |
Rated Voltage (V): |
220V Or As Request |
Rated Currency (A): |
7.8 8.7/ 11.3 12.7/ 20.5 22.7/ 22.7 23.6/ 27.2 28.2/ 28.6 30.9 |
Rated Rotation Speed (r/min): |
3000 3600 |
Phase No.: |
Single Phase |
Power Factor: |
1 |
Insulation Grade: |
F |
Pole Number: |
2 |
Excitation Mode: |
Self-excitation & Constant Voltage (AVR) |
Panel Type: |
General Panel |
Receptacle: |
Two Receptacles |
Connection Pole: |
Without |
DC 12V Output: |
Connection Pole Output |
Overall Dmension(mm): |
690x480x560/ 690x480x560/ 730x495x630/ 730x495x630/ 730x495x630/ 730x495x655 |
Dry Weight (kg): |
53 70 100 105 110 115 |
Working Assorting Weight (kg): |
66 83 110 115 120 125 |
Noise Level (7m): |
77 DB |
Structure Type: |
Open Type |
Engine Type: |
Single Cylinder, Vertical, Four Stroke, Direct Injection, Air-cooled |
Cylinder No. -bore X Stroke (mm): |
1-73x55/ 1-78x62/ 1-86x72/ 1-88x75/ 1-92x75/ 1-95x75 |
Displacement(ml): |
247 296 418 456 498 531 |
Rated Power: |
2.5/3000-2.8/3600. 3.68/3000-4/3600. 5.7/3000-6.3/3600. 6.5/3000-7.2/3600. 7.6/3000-8.2/3600. 8.1/3000-8.7/3600 |
Compression Ratio: |
20:01, 19:01 |
Lubrication System: |
Pressure Splashed |
Fuel Type: |
0#(summer)-10#(winter)-35#(chillness) Diesel |
Lube Oil Brand: |
CD Grade Or SAE10W-30, 15W-40 |
Lube Capacity (L): |
0.75 1.1 1.65 |
Starting Motor Capacity: |
12V 0.9KW/ 12V 1.2KW |
Charging Generator Capacity: |
12V 8.3A |
Battery Capacity: |
12V 20Ah/ 12V 30Ah |
Fuel Consumption (g/kw*h): |
≤280 |
Fuel Tank Capacity (L): |
13.5 |
Continuous Running Time: |
10h 8h 7h |

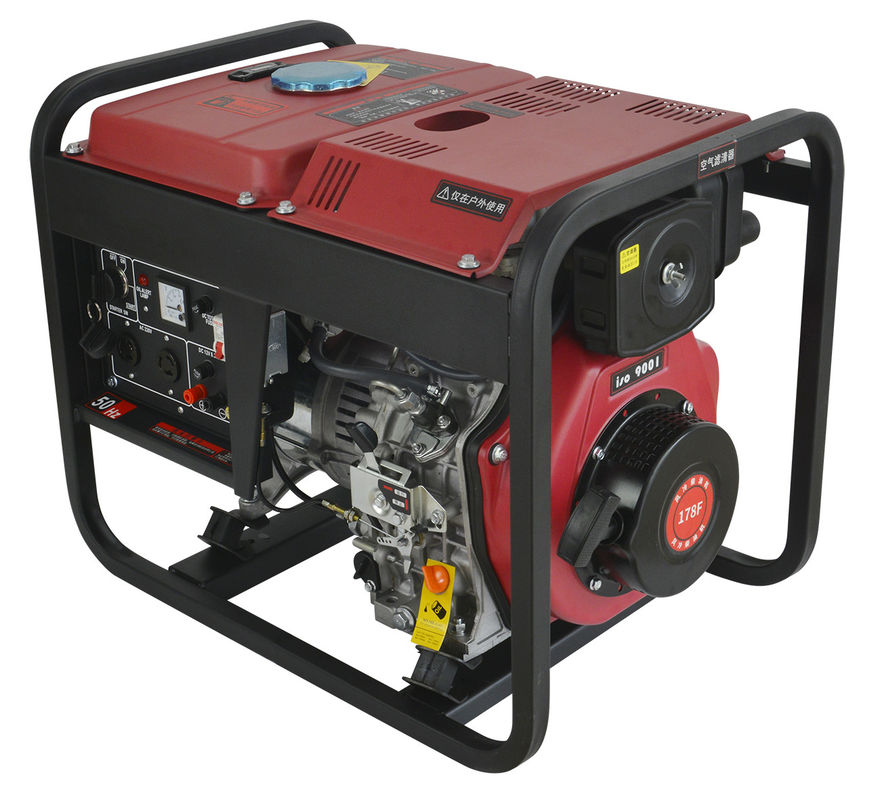

GET2500E GET3500E GET6500E GET7500E GET8500E GET9500E Open Type Diesel Generator
Rated Output(kw): | 1.8 2.0/ 2.5 2.8/ 4.8 5.0/ 5.0 5.2/ 6.0 6.2/ 6.3 6.8 |
Rated Voltage (V): | 220V Or As Request |
Rated Rotation Speed (r/min): | 3000 3600 |
Power Factor: | 1 |
Pole Number: | 2 |
Panel Type: | General Panel |
Connection Pole: | Without |
Overall Dmension(mm): | 690x480x560/ 690x480x560/ 730x495x630/ 730x495x630/ 730x495x630/ 730x495x655 |
Working Assorting Weight (kg): | 66 83 110 115 120 125 |
Structure Type: | Open Type |
Cylinder No. -bore X Stroke (mm): | 1-73x55/ 1-78x62/ 1-86x72/ 1-88x75/ 1-92x75/ 1-95x75 |
Rated Power: | 2.5/3000-2.8/3600. 3.68/3000-4/3600. 5.7/3000-6.3/3600. 6.5/3000-7.2/3600. 7.6/3000-8.2/3600. 8.1/3000-8.7/3600 |
Lubrication System: | Pressure Splashed |
Lube Oil Brand: | CD Grade Or SAE10W-30, 15W-40 |
Starting Motor Capacity: | 12V 0.9KW/ 12V 1.2KW |
Battery Capacity: | 12V 20Ah/ 12V 30Ah |
Fuel Tank Capacity (L): | 13.5 |
Rated Frequency: | 50hz 60hz |
Max Output (kw): | 2.0 2.2/ 2.7 3.0/ 5.2 5.5/ 5.5 5.7/ 6.6 6.8/ 6.9 7.4 |
Rated Currency (A): | 7.8 8.7/ 11.3 12.7/ 20.5 22.7/ 22.7 23.6/ 27.2 28.2/ 28.6 30.9 |
Phase No.: | Single Phase |
Insulation Grade: | F |
Excitation Mode: | Self-excitation & Constant Voltage (AVR) |
Receptacle: | Two Receptacles |
DC 12V Output: | Connection Pole Output |
Dry Weight (kg): | 53 70 100 105 110 115 |
Noise Level (7m): | 77 DB |
Engine Type: | Single Cylinder, Vertical, Four Stroke, Direct Injection, Air-cooled |
Displacement(ml): | 247 296 418 456 498 531 |
Compression Ratio: | 20:01, 19:01 |
Fuel Type: | 0#(summer)-10#(winter)-35#(chillness) Diesel |
Lube Capacity (L): | 0.75 1.1 1.65 |
Charging Generator Capacity: | 12V 8.3A |
Fuel Consumption (g/kw*h): | ≤280 |
GET2500E Open Type Diesel Generator:
GET3500E Open Type Diesel Generator:
GET6500E Open Type Diesel Generator:
GET7500E Open Type Diesel Generator:
GET8500E Open Type Diesel Generator:
GET9500E Open Type Diesel Generator:
It's important to consider the power requirements of your specific application and consult with the manufacturer or supplier to determine the most suitable open type diesel generator model for your needs.
