Product Details
Place of Origin: China
Brand Name: GET
Certification: ISO CE
Document: Product Brochure PDF
Payment & Shipping Terms
Price: Negotiable
Delivery Time: 15-20 workdays
Payment Terms: LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Type: |
Diesel Water Pump |
Suction/discharger Port Diameter Mm(inch): |
50(2'). 80(3'). 100(4'). 150(6') |
Discharge Capacity(m³/h): |
30 40 110 150 |
Total Head Lift: |
25m 26m 22m 20m |
Self-priming Time (s/4m): |
80 120 180 180 |
Max Suction Head: |
8m 8m 8m 6m |
Rotation Speed (r/min): |
3600 |
Noise Level Db(A)/7m): |
85 |
Overall Dimension(mm): |
510x455x640. 560x455x655. 650x470x700. 770x574x785 |
Dry Weight: |
44kg 50kg 71kg 95kg |
Engine Model: |
GET173F GET178F GET186FA GET192F |
Rated Power: |
2.8kw 4kw 6.3kw 8.5kw |
Fuel Consumption G/kw.h: |
288 285 281 281 |
Displacement (cm³): |
247 296 418 498 |
Starter System: |
Recoil Starter |
Fuel Tank Capacity: |
13.5L |
Continuous Working Period: |
10hr 10hr 8hr 8hr |
Type: |
Diesel Water Pump |
Suction/discharger Port Diameter Mm(inch): |
50(2'). 80(3'). 100(4'). 150(6') |
Discharge Capacity(m³/h): |
30 40 110 150 |
Total Head Lift: |
25m 26m 22m 20m |
Self-priming Time (s/4m): |
80 120 180 180 |
Max Suction Head: |
8m 8m 8m 6m |
Rotation Speed (r/min): |
3600 |
Noise Level Db(A)/7m): |
85 |
Overall Dimension(mm): |
510x455x640. 560x455x655. 650x470x700. 770x574x785 |
Dry Weight: |
44kg 50kg 71kg 95kg |
Engine Model: |
GET173F GET178F GET186FA GET192F |
Rated Power: |
2.8kw 4kw 6.3kw 8.5kw |
Fuel Consumption G/kw.h: |
288 285 281 281 |
Displacement (cm³): |
247 296 418 498 |
Starter System: |
Recoil Starter |
Fuel Tank Capacity: |
13.5L |
Continuous Working Period: |
10hr 10hr 8hr 8hr |

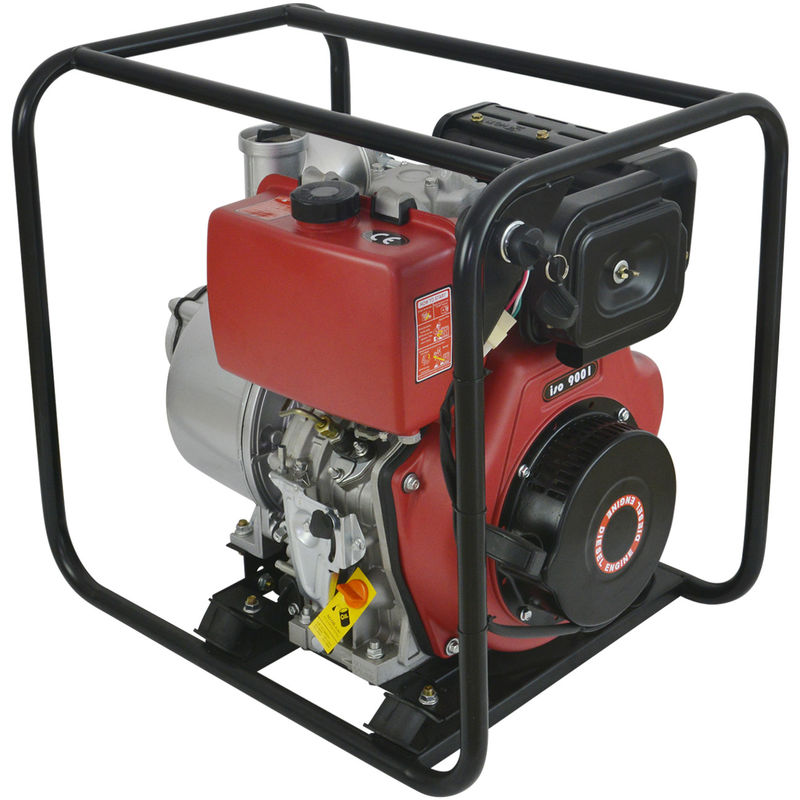

Recoil Starter Diesel Water Pump GETDP50 GETDP80 GETDP100 GETDP150
A diesel water pump is a type of pump powered by a diesel engine that is specifically designed for pumping water. These pumps are commonly used in various applications where water needs to be moved efficiently, such as irrigation, construction sites, flood control, and dewatering. Here are some key features and considerations of diesel water pumps:
Type: | Diesel Clean Water Pump | Suction/discharger Port Diameter Mm(inch): | 50(2'). 80(3'). 100(4'). 150(6') |
Discharge Capacity(m³/h): | 30 40 110 150 | Total Head Lift: | 25m 26m 22m 20m |
Self-priming Time (s/4m): | 80 120 180 180 | Max Suction Head: | 8m 8m 8m 6m |
Rotation Speed (r/min): | 3600 | Noise Level Db(A)/7m): | 85 |
Overall Dimension(mm): | 510x455x640. 560x455x655. 650x470x700. 770x574x785 | Dry Weight: | 44kg 50kg 71kg 95kg |
Engine Model: | GET173F GET178F GET186FA GET192F | Rated Power: | 2.8kw 4kw 6.3kw 8.5kw |
Fuel Consumption G/kw.h: | 288 285 281 281 | Displacement (cm³): | 247 296 418 498 |
Starter System: | Recoil Starter | Fuel Tank Capacity: | 13.5L |
Diesel Engine: Diesel water pumps are typically equipped with a diesel engine as the power source. Diesel engines are known for their durability, fuel efficiency, and ability to handle heavy-duty applications.
Pump Type: Diesel water pumps can be centrifugal pumps or self-priming pumps. Centrifugal pumps are commonly used for high flow rates and low to medium head applications, while self-priming pumps can handle lower flow rates and higher head requirements.
Flow Rate and Head: The flow rate, measured in cubic meters per hour (m³/h) or gallons per minute (GPM), indicates how much water the pump can move in a given time. The head, measured in meters or feet, refers to the vertical distance the pump can lift water. The specific flow rate and head capabilities depend on the pump model and size.
Portability: Diesel water pumps are often designed to be portable and easy to transport. They may feature handles, wheels, or a compact design for convenient movement around different job sites.
Fuel Tank Capacity: Diesel water pumps typically have a built-in fuel tank to store diesel fuel for the engine's operation. The tank size determines how long the pump can run continuously before refueling is required.
Automatic Start/Stop: Some diesel water pumps may include automatic start/stop features, which allow the pump to start and stop automatically based on water level or pressure sensors. This feature helps to conserve fuel and reduce wear on the pump.
Durable Construction: Diesel water pumps are constructed with materials that can withstand the harsh operating conditions and corrosive nature of water. They are often built with sturdy frames, corrosion-resistant components, and seals to ensure longevity and reliability.
Maintenance: Regular maintenance is essential to keep a diesel water pump in optimal condition. This includes checking oil levels, changing filters, inspecting belts, and following the manufacturer's recommended service intervals.
When selecting a diesel water pump, consider factors such as the required flow rate, head, and specific application needs. Additionally, it's important to choose a reputable manufacturer and consult with experts or professionals in the field to ensure you select the most suitable pump for your specific requirements.
