Product Details
Place of Origin: China
Brand Name: GET
Certification: ISO CE
Document: Product Brochure PDF
Payment & Shipping Terms
Price: Negotiable
Delivery Time: 15-20 workdays
Payment Terms: LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Rated Frequency: |
50hz 60hz |
Rated Output(kw): |
2.5 2.8/ 4.5 4.8/ 4.8 5.0/ 5.7 6.0/ 6.0 6.3 |
Max Output (kw): |
2.7 3.0/ 5.0 5.2/ 5.2/5.5/ 6.3 6.9/ 6.8 7.7 |
Rated Voltage (V): |
220V Or As Request |
Rated Currency (A): |
11.3 12.7/ 20.4 21.8/ 21.8 22.7/ 25.9 27.2/ 27.2 28.6 |
Rated Rotation Speed (r/min): |
3000 3600 |
Phase No.: |
Single Phase |
Power Factor: |
1 |
Insulation Grade: |
F |
Pole Number: |
2 |
Excitation Mode: |
Self-excitation & Constant Voltage (AVR) |
Panel Type: |
General Panel |
Receptacle: |
Two Receptacles |
Connection Pole: |
Without |
DC 12V Output: |
Connection Pole Output |
Overall Dmension(mm): |
945*555*700 |
Dry Weight (kg): |
164 150 150 153 161 |
Working Assorting Weight (kg): |
179 185 186 186 187 |
Noise Level (7m): |
72 DB |
Structure Type: |
Silent Type |
Engine Type: |
Single Cylinder, Vertical, Four Stroke, Direct Injection, Air-cooled |
Cylinder No. -bore X Stroke (mm): |
1-78x62/ 1-86x72/ 1-88x75/ 1-92x75/ 1-95x75 |
Displacement(ml): |
296 418 456 498 531 |
Rated Power: |
3.68/3000-4/3600. 5.7/3000-6.3/3600. 6.5/3000-7.2/3600. 7.6/3000-8.2/3600. 8.1/3000-8.7/3600 |
Compression Ratio: |
20:01, 19:01 |
Lubrication System: |
Pressure Splashed |
Starting System: |
Electric Start |
Fuel Type: |
0#(summer)-10#(winter)-35#(chillness) Diesel |
Lube Oil Brand: |
CD Grade Or SAE10W-30, 15W-40 |
Lube Capacity (L): |
1.1/ 1.65 |
Starting Motor Capacity: |
12V 0.9KW/ 12V 1.2KW |
Charging Generator Capacity: |
12V 8.3A |
Battery Capacity: |
12V 30Ah |
Fuel Consumption (g/kw*h): |
≤280 |
Fuel Tank Capacity (L): |
15 |
Continuous Running Time: |
11h 8h 8h 7h 7h |
Rated Frequency: |
50hz 60hz |
Rated Output(kw): |
2.5 2.8/ 4.5 4.8/ 4.8 5.0/ 5.7 6.0/ 6.0 6.3 |
Max Output (kw): |
2.7 3.0/ 5.0 5.2/ 5.2/5.5/ 6.3 6.9/ 6.8 7.7 |
Rated Voltage (V): |
220V Or As Request |
Rated Currency (A): |
11.3 12.7/ 20.4 21.8/ 21.8 22.7/ 25.9 27.2/ 27.2 28.6 |
Rated Rotation Speed (r/min): |
3000 3600 |
Phase No.: |
Single Phase |
Power Factor: |
1 |
Insulation Grade: |
F |
Pole Number: |
2 |
Excitation Mode: |
Self-excitation & Constant Voltage (AVR) |
Panel Type: |
General Panel |
Receptacle: |
Two Receptacles |
Connection Pole: |
Without |
DC 12V Output: |
Connection Pole Output |
Overall Dmension(mm): |
945*555*700 |
Dry Weight (kg): |
164 150 150 153 161 |
Working Assorting Weight (kg): |
179 185 186 186 187 |
Noise Level (7m): |
72 DB |
Structure Type: |
Silent Type |
Engine Type: |
Single Cylinder, Vertical, Four Stroke, Direct Injection, Air-cooled |
Cylinder No. -bore X Stroke (mm): |
1-78x62/ 1-86x72/ 1-88x75/ 1-92x75/ 1-95x75 |
Displacement(ml): |
296 418 456 498 531 |
Rated Power: |
3.68/3000-4/3600. 5.7/3000-6.3/3600. 6.5/3000-7.2/3600. 7.6/3000-8.2/3600. 8.1/3000-8.7/3600 |
Compression Ratio: |
20:01, 19:01 |
Lubrication System: |
Pressure Splashed |
Starting System: |
Electric Start |
Fuel Type: |
0#(summer)-10#(winter)-35#(chillness) Diesel |
Lube Oil Brand: |
CD Grade Or SAE10W-30, 15W-40 |
Lube Capacity (L): |
1.1/ 1.65 |
Starting Motor Capacity: |
12V 0.9KW/ 12V 1.2KW |
Charging Generator Capacity: |
12V 8.3A |
Battery Capacity: |
12V 30Ah |
Fuel Consumption (g/kw*h): |
≤280 |
Fuel Tank Capacity (L): |
15 |
Continuous Running Time: |
11h 8h 8h 7h 7h |

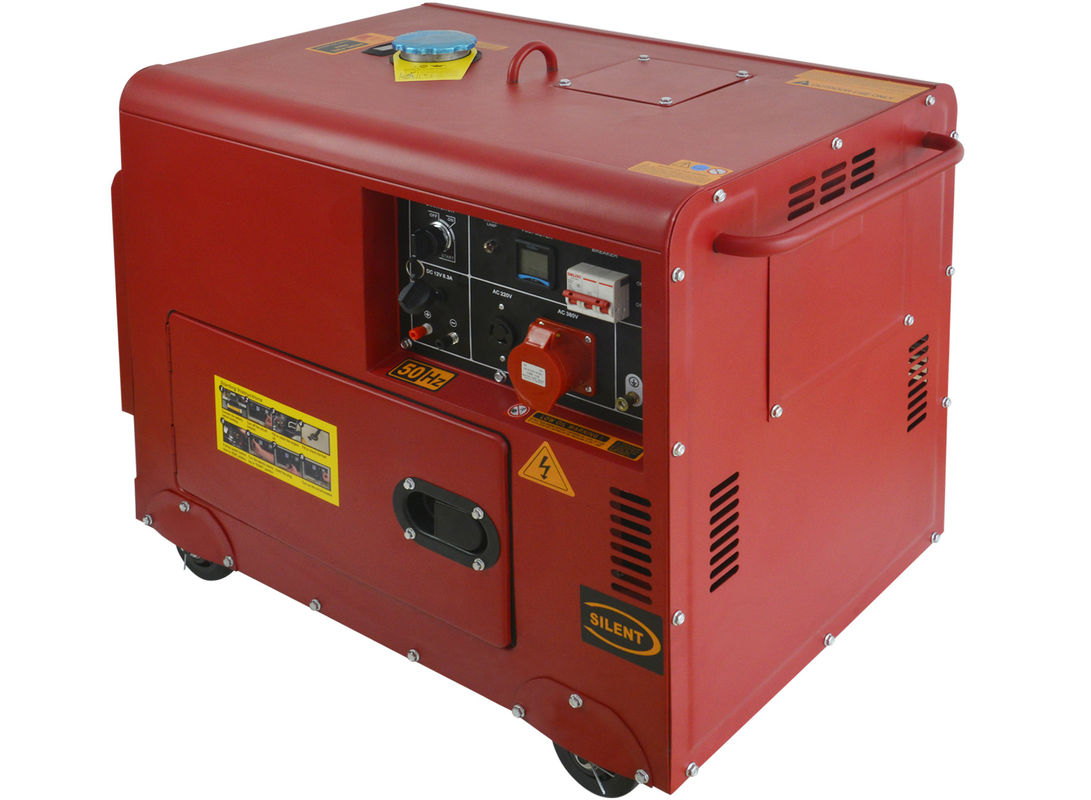

GET3500T GET6500T GET7500T GET8500T GET9500T Silent Diesel Generator
The models you mentioned, GET3500T, GET6500T, GET7500T, GET8500T, and GET9500T, refer to silent diesel generators. These generators are designed with soundproof enclosures to minimize noise levels during operation. Here are some details about these silent diesel generators:
Rated Frequency: | 50hz 60hz |
Max Output (kw): | 2.7 3.0/ 5.0 5.2/ 5.2/5.5/ 6.3 6.9/ 6.8 7.7 |
Rated Currency (A): | 11.3 12.7/ 20.4 21.8/ 21.8 22.7/ 25.9 27.2/ 27.2 28.6 |
Phase No.: | Single Phase |
Insulation Grade: | F |
Excitation Mode: | Self-excitation & Constant Voltage (AVR) |
Receptacle: | Two Receptacles |
DC 12V Output: | Connection Pole Output |
Dry Weight (kg): | 164 150 150 153 161 |
Noise Level (7m): | 72 DB |
Engine Type: | Single Cylinder, Vertical, Four Stroke, Direct Injection, Air-cooled |
Displacement(ml): | 296 418 456 498 531 |
Compression Ratio: | 20:01, 19:01 |
Starting System: | Electric Start |
Lube Oil Brand: | CD Grade Or SAE10W-30, 15W-40 |
Starting Motor Capacity: | 12V 0.9KW/ 12V 1.2KW |
Battery Capacity: | 12V 30Ah |
Fuel Tank Capacity (L): | 15 |
Rated Output(kw): | 2.5 2.8/ 4.5 4.8/ 4.8 5.0/ 5.7 6.0/ 6.0 6.3 |
Rated Voltage (V): | 220V Or As Request |
Rated Rotation Speed (r/min): | 3000 3600 |
Power Factor: | 1 |
Pole Number: | 2 |
Panel Type: | General Panel |
Connection Pole: | Without |
Overall Dmension(mm): | 945*555*700 |
Working Assorting Weight (kg): | 179 185 186 186 187 |
Structure Type: | Silent Type |
Cylinder No. -bore X Stroke (mm): | 1-78x62/ 1-86x72/ 1-88x75/ 1-92x75/ 1-95x75 |
Rated Power: | 3.68/3000-4/3600. 5.7/3000-6.3/3600. 6.5/3000-7.2/3600. 7.6/3000-8.2/3600. 8.1/3000-8.7/3600 |
Lubrication System: | Pressure Splashed |
Fuel Type: | 0#(summer)-10#(winter)-35#(chillness) Diesel |
Lube Capacity (L): | 1.1/ 1.65 |
Charging Generator Capacity: | 12V 8.3A |
Fuel Consumption (g/kw*h): | ≤280 |
GET3500T Silent Diesel Generator:
GET6500T Silent Diesel Generator:
GET7500T Silent Diesel Generator:
GET8500T Silent Diesel Generator:
GET9500T Silent Diesel Generator:
When selecting a silent diesel generator, consider your specific power requirements, noise limitations, fuel efficiency, and other factors relevant to your application. It's recommended to consult with the manufacturer or supplier to ensure you choose the most suitable silent diesel generator for your needs.
