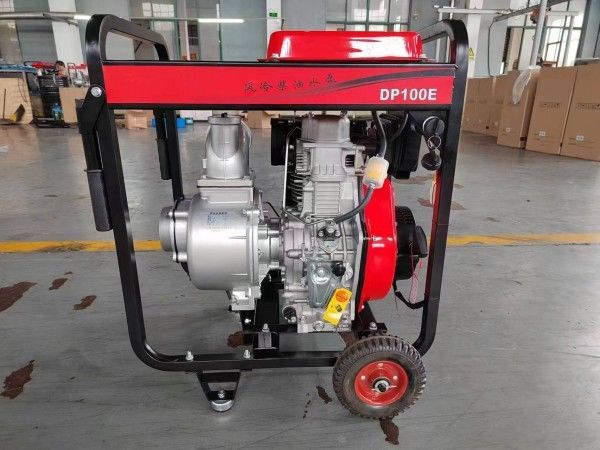

3600RPM High Pressure Diesel Water Pump 8.5kw 6 Inch Diesel Water Pump

Product Details

Place of Origin: China

Brand Name: GET

Certification: ISO CE

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Delivery Time: 15-20 workdays

Payment Terms: LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram

Get Best Price
Contact Now
Specifications
Highlight:

8.5kw 6 inch diesel water pump

,

high pressure diesel water pump 2.8kw

,

3600rpm high pressure diesel water pump

Type:
Diesel Water Pump
Suction/discharger Port Diameter Mm(inch):
50(2'). 80(3'). 100(4'). 150(6')
Discharge Capacity(m³/h):
30 40 110 150
Total Head Lift:
25m 26m 22m 20m
Self-priming Time (s/4m):
80 120 180 180
Max Suction Head:
8m 8m 8m 6m
Rotation Speed (r/min):
3600
Noise Level Db(A)/7m):
85
Overall Dimension(mm):
510x455x640. 560x455x655. 650x470x700. 770x574x785
Dry Weight:
44kg 50kg 71kg 95kg
Engine Model:
GETDP100
Rated Power:
2.8kw 4kw 6.3kw 8.5kw
Fuel Consumption G/kw.h:
288 285 281 281
Displacement (cm³):
247 296 418 498
Starter System:
Recoil Starter
Fuel Tank Capacity:
13.5L
Continuous Working Period:
10hr 10hr 8hr 8hr
Type:
Diesel Water Pump
Suction/discharger Port Diameter Mm(inch):
50(2'). 80(3'). 100(4'). 150(6')
Discharge Capacity(m³/h):
30 40 110 150
Total Head Lift:
25m 26m 22m 20m
Self-priming Time (s/4m):
80 120 180 180
Max Suction Head:
8m 8m 8m 6m
Rotation Speed (r/min):
3600
Noise Level Db(A)/7m):
85
Overall Dimension(mm):
510x455x640. 560x455x655. 650x470x700. 770x574x785
Dry Weight:
44kg 50kg 71kg 95kg
Engine Model:
GETDP100
Rated Power:
2.8kw 4kw 6.3kw 8.5kw
Fuel Consumption G/kw.h:
288 285 281 281
Displacement (cm³):
247 296 418 498
Starter System:
Recoil Starter
Fuel Tank Capacity:
13.5L
Continuous Working Period:
10hr 10hr 8hr 8hr
Description
3600RPM High Pressure Diesel Water Pump 8.5kw 6 Inch Diesel Water Pump

GETDP100 High Speed Diesel Pump For Clean Water 3600rpm



Diesel pumps for clean water applications are commonly used in various industries and scenarios where efficient water transfer or dewatering is required. Here are some typical applications where diesel pumps for clean water excel:

  1. Construction Sites: Diesel pumps are often used on construction sites for dewatering excavations, removing excess water from trenches, or draining flooded areas. They can handle large volumes of water and provide the necessary water flow to keep construction sites dry and operational.

  2. Agriculture and Irrigation: Diesel pumps are essential for agricultural purposes, such as irrigation systems, drainage of fields, or water supply for livestock. They can efficiently transfer water from rivers, wells, or reservoirs to irrigate crops or provide water for livestock.

  3. Emergency Situations: During natural disasters or emergency situations, diesel pumps can play a crucial role in water management. They can be used for flood control, pumping water out of flooded areas, or providing temporary water supply in disaster-stricken regions where infrastructure may be damaged or non-functional.

  4. Mining and Quarrying: Diesel pumps are commonly used in mining and quarrying operations for dewatering mines, pits, or quarries. They help remove water from underground or excavated areas to ensure safe and efficient mining operations.

  5. Municipal and Industrial Applications: Diesel pumps are employed in municipal water supply systems, wastewater treatment plants, and industrial processes that require water transfer or dewatering. They can handle clean water pumping tasks in these environments efficiently.

  6. Remote Locations: Diesel pumps are particularly useful in remote or off-grid locations where access to electricity may be challenging. They provide a reliable water pumping solution, ensuring a water supply for various applications, such as remote settlements, agricultural activities in rural areas, or off-grid industrial operations.

Type: Diesel Clean Water Pump Suction/discharger Port Diameter Mm(inch): 50(2'). 80(3'). 100(4'). 150(6')
Discharge Capacity(m³/h): 30 40 110 150 Total Head Lift: 25m 26m 22m 20m
Self-priming Time (s/4m): 80 120 180 180 Max Suction Head: 8m 8m 8m 6m
Rotation Speed (r/min): 3600 Noise Level Db(A)/7m): 85
Overall Dimension(mm): 510x455x640. 560x455x655. 650x470x700. 770x574x785 Dry Weight: 44kg 50kg 71kg 95kg
Engine Model: GET173F GET178F GET186FA GET192F Rated Power: 2.8kw 4kw 6.3kw 8.5kw
Fuel Consumption G/kw.h: 288 285 281 281 Displacement (cm³): 247 296 418 498
Starter System: Recoil Starter Fuel Tank Capacity: 13.5L
