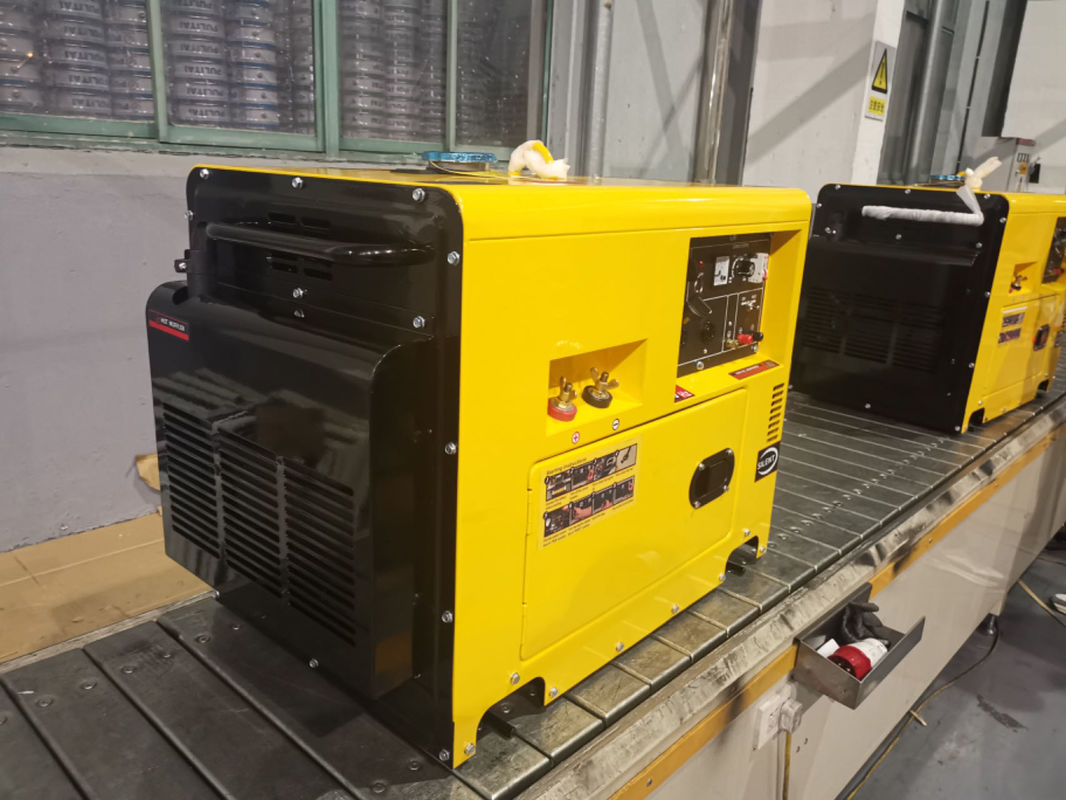

Yellow Small Diesel Welder Generator 50HZ 60HZ Portable Diesel Welding Machine

Product Details

Place of Origin: China

Brand Name: GET

Certification: ISO CE

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Delivery Time: 15-20 workdays

Payment Terms: LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    yellow small diesel welder generator, small diesel welder generator 50hz, yellow diesel powered welder generator


Rated Frequency:	50hz 60hz	Rated Power (kw):	2 5
Rated Voltage (V):	220V Or As Request	Rated Currency (A):	8.7 9.5A
Rated Rotation Speed (r/min):	3000 3600	Phase No.:	Single Phase
Power Factor:	1	No Load Welding Voltage:	65-70V
Insulation Grade:	F	Pole Number:	2
Engine Mode:	GET186FA GET192F	Displacement(ml):	418 456
Engine Type:	Single Cylinder, Vertical, Four Stroke, Direct Injection, Air-cooled	Bore X Stroke (mm):	1-86x72/ 1-92x75
Compression Ratio:	19:01	Rated Power:	5.7 6.3/ 7.2 8.2
Lubrication System:	Pressure Splashed	Lube Oil Brand:	CD Grade Or SAE10W-30, 15W-40
Lube Capacity (L):	1.65	Fuel Type:	0#(summer)-10#(winter)-35#(chillness) Diesel
Fuel Consumption (g/kw*h):	≤280	Fuel Tank Capacity (L):	13.5
Continuous Running Time:	8h	Rated Welding Current:	180A 220A
Welding Voltage:	25-30V	Welding Load Continous Ratio:	60%
Welding Current Adjustment Range:	50-180A/ 50-200A	Electrode Diameter:	1.6-3.2mm 1.6-5.0mm
Excitation Mode:	Seperate-excitation+AVR Voltage Regulation AVR	Rectifying Mode:	Diode
Connection Mode:	Drive Bearing, Rigid Connection	Overall Dimension:	720x492x655mm
Structure Type:	Open Type	Dry Weight:	112kg 116kg

Rated Frequency:	50hz 60hz
Rated Power (kw):	2 5
Rated Voltage (V):	220V Or As Request
Rated Currency (A):	8.7 9.5A
Rated Rotation Speed (r/min):	3000 3600
Phase No.:	Single Phase
Power Factor:	1
No Load Welding Voltage:	65-70V
Insulation Grade:	F
Pole Number:	2
Engine Mode:	GET186FA GET192F
Displacement(ml):	418 456
Engine Type:	Single Cylinder, Vertical, Four Stroke, Direct Injection, Air-cooled
Bore X Stroke (mm):	1-86x72/ 1-92x75
Compression Ratio:	19:01
Rated Power:	5.7 6.3/ 7.2 8.2
Lubrication System:	Pressure Splashed
Lube Oil Brand:	CD Grade Or SAE10W-30, 15W-40
Lube Capacity (L):	1.65
Fuel Type:	0#(summer)-10#(winter)-35#(chillness) Diesel
Fuel Consumption (g/kw*h):	≤280
Fuel Tank Capacity (L):	13.5
Continuous Running Time:	8h
Rated Welding Current:	180A 220A
Welding Voltage:	25-30V
Welding Load Continous Ratio:	60%
Welding Current Adjustment Range:	50-180A/ 50-200A
Electrode Diameter:	1.6-3.2mm 1.6-5.0mm
Excitation Mode:	Seperate-excitation+AVR Voltage Regulation AVR
Rectifying Mode:	Diode
Connection Mode:	Drive Bearing, Rigid Connection
Overall Dimension:	720x492x655mm
Structure Type:	Open Type
Dry Weight:	112kg 116kg

Description

Yellow Small Diesel Welder Generator 50HZ 60HZ Portable Diesel Welding Machine

Portable Diesel Welder Generator GET6500EAW Diesel Generator For Welding Machine

Portable diesel welder generators have a wide range of applications and are commonly used in various industries and settings. Here are some typical applications where portable diesel welder generators excel:

Rated Power (kw):	2 5
Rated Currency (A):	8.7 9.5A
Phase No.:	Single Phase
No Load Welding Voltage:	65-70V
Pole Number:	2
Displacement(ml):	418 456
Bore X Stroke (mm):	1-86x72/ 1-92x75
Rated Power:	5.7 6.3/ 7.2 8.2
Lube Oil Brand:	CD Grade Or SAE10W-30, 15W-40
Fuel Type:	0#(summer)-10#(winter)-35#(chillness) Diesel
Fuel Tank Capacity (L):	13.5
Rated Welding Current:	180A 220A
Welding Load Continous Ratio:	60%
Electrode Diameter:	1.6-3.2mm 1.6-5.0mm
Rectifying Mode:	Diode
Overall Dimension:	720x492x655mm
Dry Weight:	112kg 116kg
Rated Frequency:	50hz 60hz
Rated Voltage (V):	220V Or As Request
Rated Rotation Speed (r/min):	3000 3600
Power Factor:	1
Insulation Grade:	F
Engine Mode:	GET186FA GET192F
Engine Type:	Single Cylinder, Vertical, Four Stroke, Direct Injection, Air-cooled
Compression Ratio:	19:01
Lubrication System:	Pressure Splashed
Lube Capacity (L):	1.65
Fuel Consumption (g/kw*h):	≤280
Continuous Running Time:	8h
Welding Voltage:	25-30V
Welding Current Adjustment Range:	50-180A/ 50-200A
Excitation Mode:	Seperate-excitation+AVR Voltage Regulation AVR
Connection Mode:	Drive Bearing, Rigid Connection
Structure Type:	Open Type

Emergency Response: During emergency situations, such as natural disasters or power outages, portable diesel welder generators can provide immediate power and welding capabilities for critical operations. They are often deployed by emergency response teams for tasks like rescue operations, temporary infrastructure repairs, and restoration efforts.
Farming and Agriculture: Portable diesel welder generators find applications in farming and agriculture, where they can power electric fencing systems, water pumps, and other equipment. Additionally, they can be used for on-site welding tasks related to farm machinery repairs and construction of farm structures.
Events and Outdoor Activities: Portable diesel welder generators are frequently utilized in outdoor events and activities, such as concerts, festivals, and sports competitions. They provide a reliable power source for lighting, sound systems, food stalls, and other event-related equipment. Moreover, they can be used for on-site welding requirements, such as stage construction or temporary infrastructure setup.
Mobile Welding Services: Welding professionals who offer mobile welding services often rely on portable diesel welder generators. These generators allow them to travel to different locations and provide welding services without depending on external power sources.

The versatility, portability, and self-contained nature of portable diesel welder generators make them indispensable in various industries and settings where a combination of power and welding capabilities is needed on the go.
