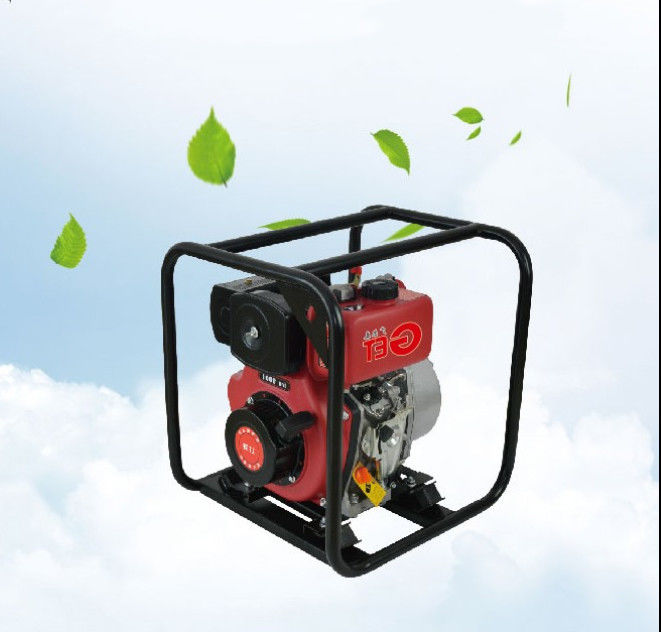

173F 178F Portable Fire Water Pump 4in Small Fire Fighting Pump

Product Details

Place of Origin: China

Brand Name: GET

Certification: ISO CE

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Delivery Time: 15-20 workdays

Payment Terms: LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            4in small fire fighting pump, portable fire water pump 4in, 178f portable fire water pump


Type:	Portable Diesel Fire Pump	Suction/discharger Port Diameter Mm(inch):	50(2'). 80(3'). 100(4'). 150(6')
Discharge Capacity（m³/h):	30 40 110 150	Total Head Lift:	25m 26m 22m 20m
Self-priming Time (s/4m):	80 120 180 180	Max Suction Head:	8m 8m 8m 6m
Rotation Speed (r/min):	3600	Noise Level Db(A)/7m):	85
Overall Dimension(mm):	510x455x640. 560x455x655. 650x470x700. 770x574x785	Dry Weight:	44kg 50kg 71kg 95kg
Engine Model:	GET173F GET178F GET186FA GET192F	Rated Power:	2.8kw 4kw 6.3kw 8.5kw
Fuel Consumption G/kw.h:	288 285 281 281	Displacement (cm³):	247 296 418 498
Starter System:	Recoil Starter	Fuel Tank Capacity:	13.5L
Continuous Working Period:	10hr 10hr 8hr 8hr

Type:	Portable Diesel Fire Pump
Suction/discharger Port Diameter Mm(inch):	50(2'). 80(3'). 100(4'). 150(6')
Discharge Capacity（m³/h):	30 40 110 150
Total Head Lift:	25m 26m 22m 20m
Self-priming Time (s/4m):	80 120 180 180
Max Suction Head:	8m 8m 8m 6m
Rotation Speed (r/min):	3600
Noise Level Db(A)/7m):	85
Overall Dimension(mm):	510x455x640. 560x455x655. 650x470x700. 770x574x785
Dry Weight:	44kg 50kg 71kg 95kg
Engine Model:	GET173F GET178F GET186FA GET192F
Rated Power:	2.8kw 4kw 6.3kw 8.5kw
Fuel Consumption G/kw.h:	288 285 281 281
Displacement (cm³):	247 296 418 498
Starter System:	Recoil Starter
Fuel Tank Capacity:	13.5L
Continuous Working Period:	10hr 10hr 8hr 8hr

Description

173F 178F Portable Fire Water Pump 4in Small Fire Fighting Pump

Portable Fire Water Pump Diesel Engine High Efficiency

Fire pump is a kind of pump equipment specially used for fire extinguishing and fire emergency. It has the following characteristics:

1. High-pressure capability: Fire pumps are capable of providing high-pressure water flow to meet the needs of fire extinguishing operations. They are usually able to generate high water pressure to effectively send water to long distances or high places for the purpose of extinguishing fires.

2. Quick Start: In an emergency, time is of the essence. Fire pumps are usually equipped with a quick start system to ensure that they start up and start working in the shortest possible time. This quickly provides the required water source and pressure to support firefighting operations.

3. Self-priming ability: Fire pumps usually have self-priming capabilities and can automatically pump water from the water source without the need for additional suction pipes or manual water suction. This allows the fire pump to respond quickly to emergencies and quickly introduce water into the system.

Model	JBC6/10
Type	vacuum pump
Max.Flow(T/h)	48
MAX.Lift(m)	60
Rated Speed(rpm)	3600
Water Shot Height	35m
Engine	190F
Maximum Suction Height(m)	7
Self-priming Time(S)	20
Discharge Port Diameter(mm)	65
N.W/G.W(KG)	91/100
Dimensions(mm)
Loading Qty(20GP/40HQ)

Model	JBC6/15
Type	vacuum pump
Max.Flow(T/h)	54
MAX.Lift(m)	80
Rated Speed(rpm)	3600
Water Shot Height	35
Engine	192
Maximum Suction Height(m)	7
Self-priming Time(S)	20
Discharge Port Diameter(mm)	65
N.W/G.W(KG)	94/103
Dimensions(mm)
Loading Qty(20GP/40HQ)

173F 178F Portable Fire Water Pump 4in Small Fire Fighting Pump 0
