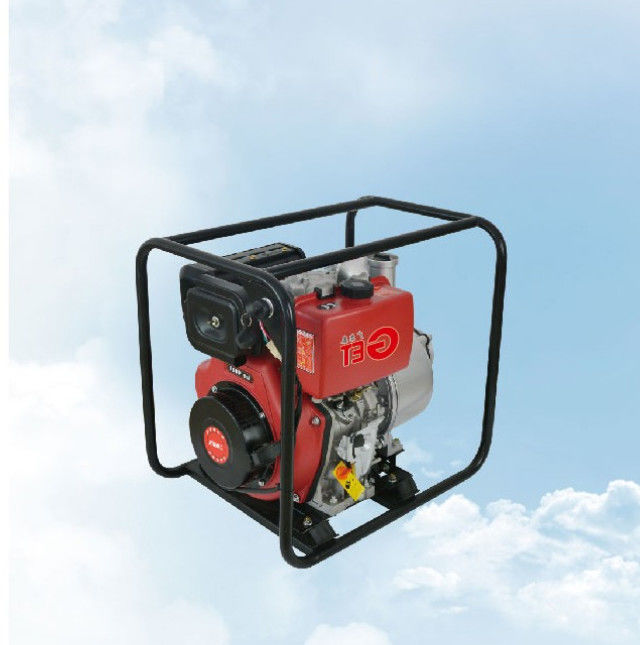

50mm 80mm Portable Fire Pump Diesel Engine Portable Emergency Fire Pump

Product Details

Place of Origin: China

Brand Name: GET

Certification: ISO CE

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Delivery Time: 15-20 workdays

Payment Terms: LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            80mm portable fire pump diesel engine, 50mm portable emergency fire pump, 80mm portable emergency fire pump


Type:	Diesel Engine Fire Pump	Suction/discharger Port Diameter Mm(inch):	50(2'). 80(3'). 100(4'). 150(6')
Discharge Capacity（m³/h):	30 40 110 150	Total Head Lift:	25m 26m 22m 20m
Self-priming Time (s/4m):	80 120 180 180	Max Suction Head:	8m 8m 8m 6m
Rotation Speed (r/min):	3600	Noise Level Db(A)/7m):	85
Overall Dimension(mm):	510x455x640. 560x455x655. 650x470x700. 770x574x785	Dry Weight:	44kg 50kg 71kg 95kg
Engine Model:	GET173F GET178F GET186FA GET192F	Rated Power:	2.8kw 4kw 6.3kw 8.5kw
Fuel Consumption G/kw.h:	288 285 281 281	Displacement (cm³):	247 296 418 498
Starter System:	Recoil Starter	Fuel Tank Capacity:	13.5L
Continuous Working Period:	10hr 10hr 8hr 8hr

Type:	Diesel Engine Fire Pump
Suction/discharger Port Diameter Mm(inch):	50(2'). 80(3'). 100(4'). 150(6')
Discharge Capacity（m³/h):	30 40 110 150
Total Head Lift:	25m 26m 22m 20m
Self-priming Time (s/4m):	80 120 180 180
Max Suction Head:	8m 8m 8m 6m
Rotation Speed (r/min):	3600
Noise Level Db(A)/7m):	85
Overall Dimension(mm):	510x455x640. 560x455x655. 650x470x700. 770x574x785
Dry Weight:	44kg 50kg 71kg 95kg
Engine Model:	GET173F GET178F GET186FA GET192F
Rated Power:	2.8kw 4kw 6.3kw 8.5kw
Fuel Consumption G/kw.h:	288 285 281 281
Displacement (cm³):	247 296 418 498
Starter System:	Recoil Starter
Fuel Tank Capacity:	13.5L
Continuous Working Period:	10hr 10hr 8hr 8hr

Description

50mm 80mm Portable Fire Pump Diesel Engine Portable Emergency Fire Pump

GET Diesel Engine Fire Pump Diesel Engine For Fire Fighting Pump

The portable fire pump is a lightweight and easy-to-carry fire pump suitable for some special or complex fire emergency scenarios. The following are some application scenarios for portable fire pumps:

1. Rural and remote areas: In rural and remote areas, firefighting resources are limited and firefighting vehicles are difficult to reach. Portable fire pumps can be easily carried to these areas to provide emergency water sources and fire-extinguishing capabilities, helping local residents carry out initial fire fighting.

2. Temporary fire protection systems: Portable fire pumps can be used to set up temporary fire protection systems, especially where there is a lack of fixed water sources or where traditional fire protection equipment is not available. With portable fire pumps, water can be pumped from nearby water sources to establish a temporary water source system to support firefighting efforts.

3. The portability and high-pressure capability of the portable fire pump make it an important fire-fighting equipment, which can provide emergency fire-fighting support in special environments and protect people's lives and property.

Model	JBC6/10
Type	vacuum pump
Max.Flow(T/h)	48
MAX.Lift(m)	60
Rated Speed(rpm)	3600
Water Shot Height	35m
Engine	190F
Maximum Suction Height(m)	7
Self-priming Time(S)	20
Discharge Port Diameter(mm)	65
N.W/G.W(KG)	91/100
Dimensions(mm)
Loading Qty(20GP/40HQ)

Model	JBC6/15
Type	vacuum pump
Max.Flow(T/h)	54
MAX.Lift(m)	80
Rated Speed(rpm)	3600
Water Shot Height	35
Engine	192
Maximum Suction Height(m)	7
Self-priming Time(S)	20
Discharge Port Diameter(mm)	65
N.W/G.W(KG)	94/103
Dimensions(mm)
Loading Qty(20GP/40HQ)
