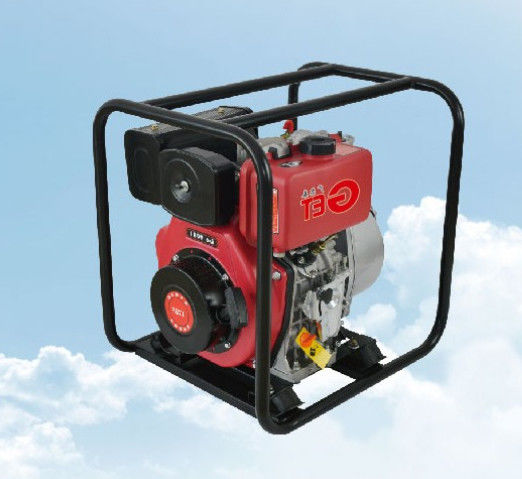

Lightweight Portable Fire Fighting Pump 2in 3in Diesel Portable Fire Pump

Product Details

Place of Origin: China

Brand Name: GET

Certification: ISO CE

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Delivery Time: 15-20 workdays

Payment Terms: LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            lightweight portable fire fighting pump, 3in diesel portable fire pump, portable fire fighting pump 2in


Type:	Portable Diesel Fire Pump	Suction/discharger Port Diameter Mm(inch):	50(2'). 80(3'). 100(4'). 150(6')
Discharge Capacity（m³/h):	30 40 110 150	Total Head Lift:	25m 26m 22m 20m
Self-priming Time (s/4m):	80 120 180 180	Max Suction Head:	8m 8m 8m 6m
Rotation Speed (r/min):	3600	Noise Level Db(A)/7m):	85
Overall Dimension(mm):	510x455x640. 560x455x655. 650x470x700. 770x574x785	Dry Weight:	44kg 50kg 71kg 95kg
Engine Model:	GET173F GET178F GET186FA GET192F	Rated Power:	2.8kw 4kw 6.3kw 8.5kw
Fuel Consumption G/kw.h:	288 285 281 281	Displacement (cm³):	247 296 418 498
Starter System:	Recoil Starter	Fuel Tank Capacity:	13.5L
Continuous Working Period:	10hr 10hr 8hr 8hr

Type:	Portable Diesel Fire Pump
Suction/discharger Port Diameter Mm(inch):	50(2'). 80(3'). 100(4'). 150(6')
Discharge Capacity（m³/h):	30 40 110 150
Total Head Lift:	25m 26m 22m 20m
Self-priming Time (s/4m):	80 120 180 180
Max Suction Head:	8m 8m 8m 6m
Rotation Speed (r/min):	3600
Noise Level Db(A)/7m):	85
Overall Dimension(mm):	510x455x640. 560x455x655. 650x470x700. 770x574x785
Dry Weight:	44kg 50kg 71kg 95kg
Engine Model:	GET173F GET178F GET186FA GET192F
Rated Power:	2.8kw 4kw 6.3kw 8.5kw
Fuel Consumption G/kw.h:	288 285 281 281
Displacement (cm³):	247 296 418 498
Starter System:	Recoil Starter
Fuel Tank Capacity:	13.5L
Continuous Working Period:	10hr 10hr 8hr 8hr

Description

Lightweight Portable Fire Fighting Pump 2in 3in Diesel Portable Fire Pump

Lightweight Portable Diesel Engine Driven Fire Water Pump

The portable fire pump is a lightweight and easy-to-carry fire pump suitable for some special or complex fire emergency scenarios. The following are some application scenarios for portable fire pumps:

1. Fire Fighting Inside Buildings: Portable fire pumps can be used inside buildings, especially in tight spaces or hard-to-reach areas. They provide a high-pressure water source to support firefighters in effective firefighting operations.

2. Wildfire fighting: Wildfires often occur in remote areas or mountainous areas, so traditional firefighting equipment is difficult to reach. Portable fire pumps can be quickly deployed at wildfire scenes through their lightweight design and portability, providing emergency water sources for firefighting efforts.

3. Forest and grassland fire extinguishing: Portable fire pumps can be used to fight forest and grassland fires. Firefighters can carry portable fire pumps into disaster areas and use their high-pressure water flow to extinguish fires to control the spread of fires.

Model	JBC6/10
Type	vacuum pump
Max.Flow(T/h)	48
MAX.Lift(m)	60
Rated Speed(rpm)	3600
Water Shot Height	35m
Engine	190F
Maximum Suction Height(m)	7
Self-priming Time(S)	20
Discharge Port Diameter(mm)	65
N.W/G.W(KG)	91/100
Dimensions(mm)
Loading Qty(20GP/40HQ)

Model	JBC6/15
Type	vacuum pump
Max.Flow(T/h)	54
MAX.Lift(m)	80
Rated Speed(rpm)	3600
Water Shot Height	35
Engine	192
Maximum Suction Height(m)	7
Self-priming Time(S)	20
Discharge Port Diameter(mm)	65
N.W/G.W(KG)	94/103
Dimensions(mm)
Loading Qty(20GP/40HQ)

Lightweight Portable Fire Fighting Pump 2in 3in Diesel Portable Fire Pump 0
