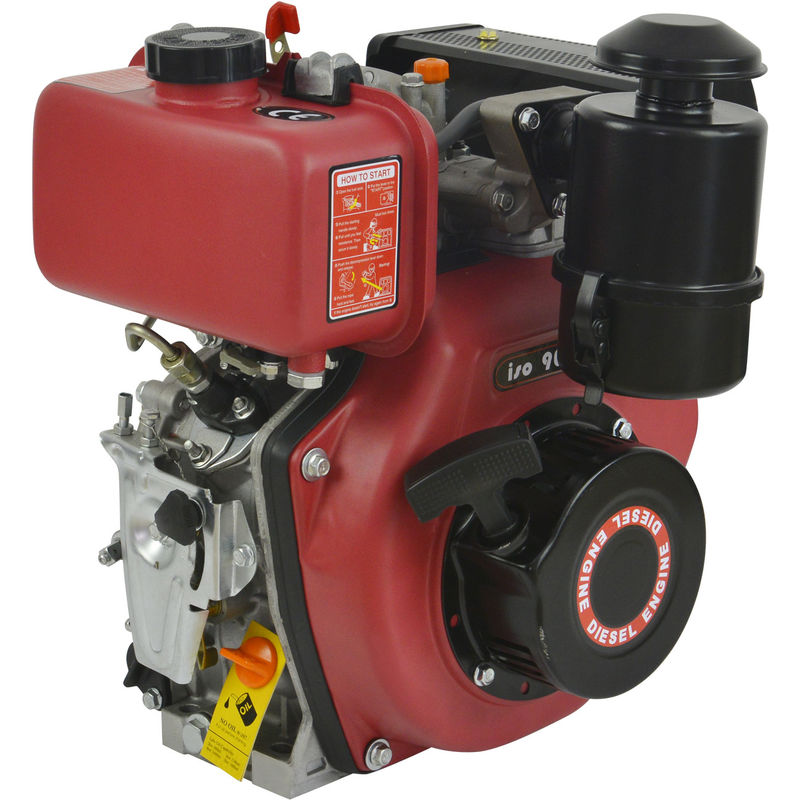

3600RPM 10HP 12HP 25HP Air Cooled Diesel Motor With Four Stroke

Product Details

Place of Origin: China

Brand Name: GET

Certification: ISO CE

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Delivery Time: 15-20 workdays

Payment Terms: LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram

Get Best Price
Contact Now
Specifications
Highlight:

vertical air cooled diesel motor

,

vertical air cooled diesel engine

,

anticlockwise air cooled diesel motor

Type:
Single Cylinder, Vertical, Four-stroke, Direct Injection, Air-cooled
Borexstroke:
73x59mm, 78x62mm, 86x72mm
Displacement:
247ml, 296ml, 418ml
Compression Ratio:
20:01, 20:01, 19:01
Rated Power(kw/rpm):
3.5/3000-3.8/3600,3.68/3000-4/3600,5.7/3000-6.3/3600
Rated Power(hp/rpm):
4.8/3000-5.2/3600, 5.0/3000-5.4/3600, 7.8/3000-8.6/3600
Rated Speed(rpm):
3000/3600
Lowest Rotation Speed At Zero Load:
≤1300r/min
Lubricating System:
Pressure Splashed
Starting System:
Recoil Start/electric Starter
Rotation Direction(face To The Output Axle ):
Anticlockwise
Fuel Type:
0#(summer)-10#(winter)-35#(chillness) Diesel
Fuel Tank Capacity:
2.5L 3.5L 5.5L
Fuel Consumption/related Rotation Speed (g/kw.h/r/min):
280.2/3000-288.3/3600, 276.1/3000-285.6/3600, 275.1/3000-281.5/3600
Lube Oil Type:
CD Grade Or SAE 10W-30, 15W-40
Lube Oil Capacity:
0.75L 1.1L 1.65L
Starting Motor Capacity:
12V 0.8KW
Charging Generator Capacity:
12V 8.3A
Battery Capacity:
12V 22Ah/ 12V 22Ah/ 12V 30Ah
Overall Dimension(LxWxH):
420x400x455mm, 480x460x510mm, 500x460x545mm
Dry Weight:
28kg, 32kg, 48kg
Type:
Single Cylinder, Vertical, Four-stroke, Direct Injection, Air-cooled
Borexstroke:
73x59mm, 78x62mm, 86x72mm
Displacement:
247ml, 296ml, 418ml
Compression Ratio:
20:01, 20:01, 19:01
Rated Power(kw/rpm):
3.5/3000-3.8/3600,3.68/3000-4/3600,5.7/3000-6.3/3600
Rated Power(hp/rpm):
4.8/3000-5.2/3600, 5.0/3000-5.4/3600, 7.8/3000-8.6/3600
Rated Speed(rpm):
3000/3600
Lowest Rotation Speed At Zero Load:
≤1300r/min
Lubricating System:
Pressure Splashed
Starting System:
Recoil Start/electric Starter
Rotation Direction(face To The Output Axle ):
Anticlockwise
Fuel Type:
0#(summer)-10#(winter)-35#(chillness) Diesel
Fuel Tank Capacity:
2.5L 3.5L 5.5L
Fuel Consumption/related Rotation Speed (g/kw.h/r/min):
280.2/3000-288.3/3600, 276.1/3000-285.6/3600, 275.1/3000-281.5/3600
Lube Oil Type:
CD Grade Or SAE 10W-30, 15W-40
Lube Oil Capacity:
0.75L 1.1L 1.65L
Starting Motor Capacity:
12V 0.8KW
Charging Generator Capacity:
12V 8.3A
Battery Capacity:
12V 22Ah/ 12V 22Ah/ 12V 30Ah
Overall Dimension(LxWxH):
420x400x455mm, 480x460x510mm, 500x460x545mm
Dry Weight:
28kg, 32kg, 48kg
Description
3600RPM 10HP 12HP 25HP Air Cooled Diesel Motor With Four Stroke

GET173F GET178F GET186FA 10hp 12hp 25hp Air Cooled Diesel Engine



GET173F GET178F GET186FA Single Cylinder Air Cooled Diesel Engine



Air-cooled diesel engines are commonly used in various industrial and agricultural applications due to their simplicity, durability, and ease of maintenance. The horsepower (hp) rating of an engine refers to its power output, indicating how much work it can potentially perform.

In the context you provided, you mentioned three different horsepower ratings for air-cooled diesel engines: 10hp, 12hp, and 25hp. These ratings indicate the power output of the engines. Here's a breakdown of each:

  1. 10hp Air-Cooled Diesel Engine: This engine has a power output of 10 horsepower. It is typically used in small applications such as water pumps, small generators, and lightweight machinery.

  2. 12hp Air-Cooled Diesel Engine: This engine has a slightly higher power output of 12 horsepower. It can handle slightly heavier loads compared to the 10hp engine. It is commonly used in small boats, compact tractors, and other light-duty machinery.

  3. 25hp Air-Cooled Diesel Engine: This engine has a significantly higher power output of 25 horsepower, making it suitable for more demanding applications. It can power larger generators, water pumps, and machinery requiring more torque and power.

It's worth noting that the actual performance and capabilities of an engine depend on various factors, including design, construction, fuel efficiency, and specific application requirements. When selecting an engine, it's essential to consider the intended use, load requirements, and any additional features or specifications needed for the particular application.





Model GET188F GET190F GET192F GET195F
Type Single cylinder, vertical, four-stroke, direct injection, air-cooled Single cylinder, vertical, four-stroke, direct injection, air-cooled Single cylinder, vertical, four-stroke, direct injection, air-cooled Single cylinder, vertical, four-stroke, direct injection, air-cooled
Bore*Stroke 88.75*90mm 75*77mm 92*75mm 95*75mm
Displacement 19:01cc 19:01cc 19:01cc 19:01cc
Compression Ratio 6.7/3000 7.8/3000 6.5/3000 8.1/3000
Rated Power (KWipm) 7.2/3600 7.3/3600 8.2/3600 8.7/3600
Rated Power (HPIIPm) 9.8/3600 10.3/3600 112/3600 11.8/3600
Rated Speed (rpm)   3000/3600
Lowest rotation speed at zero loed   1300
Lubricating system   Pressure splashad Pressure splashad Pressure splashad




3600RPM 10HP 12HP 25HP Air Cooled Diesel Motor With Four Stroke 0
