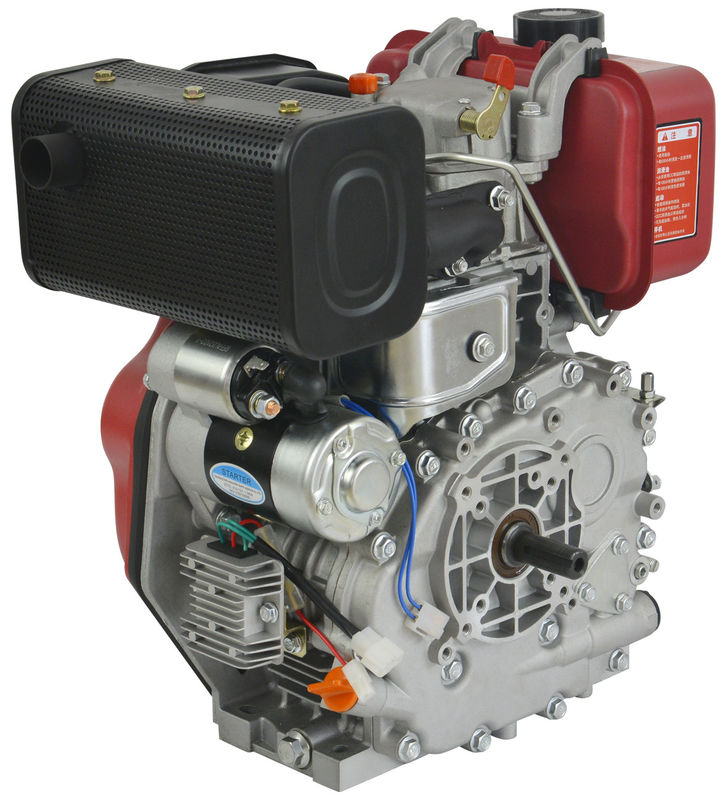

4KW 3600RPM Single Cylinder Air Cooled Engine Recoil / Electric Starter

Product Details

Place of Origin: China

Brand Name: GET

Certification: ISO CE

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Delivery Time: 15-20 workdays

Payment Terms: LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram

Get Best Price
Contact Now
Specifications
Highlight:

3600rpm single cylinder air cooled engine

,

vertical air cooled diesel engine

,

anticlockwise air cooled diesel engine

Type:
Single Cylinder, Vertical, Four-stroke, Direct Injection, Air-cooled
Borexstroke:
73x59mm, 78x62mm, 86x72mm
Displacement:
247ml, 296ml, 418ml
Compression Ratio:
20:01, 20:01, 19:01
Rated Power(kw/rpm):
3.5/3000-3.8/3600,3.68/3000-4/3600,5.7/3000-6.3/3600
Rated Power(hp/rpm):
4.8/3000-5.2/3600, 5.0/3000-5.4/3600, 7.8/3000-8.6/3600
Rated Speed(rpm):
3000/3600
Lowest Rotation Speed At Zero Load:
≤1300r/min
Lubricating System:
Pressure Splashed
Starting System:
Recoil Start/electric Starter
Rotation Direction(face To The Output Axle ):
Anticlockwise
Fuel Type:
0#(summer)-10#(winter)-35#(chillness) Diesel
Fuel Tank Capacity:
2.5L 3.5L 5.5L
Fuel Consumption/related Rotation Speed (g/kw.h/r/min):
280.2/3000-288.3/3600, 276.1/3000-285.6/3600, 275.1/3000-281.5/3600
Lube Oil Type:
CD Grade Or SAE 10W-30, 15W-40
Lube Oil Capacity:
0.75L 1.1L 1.65L
Starting Motor Capacity:
12V 0.8KW
Charging Generator Capacity:
12V 8.3A
Battery Capacity:
12V 22Ah/ 12V 22Ah/ 12V 30Ah
Overall Dimension(LxWxH):
420x400x455mm, 480x460x510mm, 500x460x545mm
Dry Weight:
28kg, 32kg, 48kg
Type:
Single Cylinder, Vertical, Four-stroke, Direct Injection, Air-cooled
Borexstroke:
73x59mm, 78x62mm, 86x72mm
Displacement:
247ml, 296ml, 418ml
Compression Ratio:
20:01, 20:01, 19:01
Rated Power(kw/rpm):
3.5/3000-3.8/3600,3.68/3000-4/3600,5.7/3000-6.3/3600
Rated Power(hp/rpm):
4.8/3000-5.2/3600, 5.0/3000-5.4/3600, 7.8/3000-8.6/3600
Rated Speed(rpm):
3000/3600
Lowest Rotation Speed At Zero Load:
≤1300r/min
Lubricating System:
Pressure Splashed
Starting System:
Recoil Start/electric Starter
Rotation Direction(face To The Output Axle ):
Anticlockwise
Fuel Type:
0#(summer)-10#(winter)-35#(chillness) Diesel
Fuel Tank Capacity:
2.5L 3.5L 5.5L
Fuel Consumption/related Rotation Speed (g/kw.h/r/min):
280.2/3000-288.3/3600, 276.1/3000-285.6/3600, 275.1/3000-281.5/3600
Lube Oil Type:
CD Grade Or SAE 10W-30, 15W-40
Lube Oil Capacity:
0.75L 1.1L 1.65L
Starting Motor Capacity:
12V 0.8KW
Charging Generator Capacity:
12V 8.3A
Battery Capacity:
12V 22Ah/ 12V 22Ah/ 12V 30Ah
Overall Dimension(LxWxH):
420x400x455mm, 480x460x510mm, 500x460x545mm
Dry Weight:
28kg, 32kg, 48kg
Description
4KW 3600RPM Single Cylinder Air Cooled Engine Recoil / Electric Starter

GET173F GET178F GET186FA Single Cylinder Air Cooled Diesel Generator



Model GET188F GET190F GET192F GET195F
Type Single cylinder, vertical, four-stroke, direct injection, air-cooled Single cylinder, vertical, four-stroke, direct injection, air-cooled Single cylinder, vertical, four-stroke, direct injection, air-cooled Single cylinder, vertical, four-stroke, direct injection, air-cooled
Bore*Stroke 88.75*90mm 75*77mm 92*75mm 95*75mm
Displacement 19:01cc 19:01cc 19:01cc 19:01cc
Compression Ratio 6.7/3000 7.8/3000 6.5/3000 8.1/3000
Rated Power (KWipm) 7.2/3600 7.3/3600 8.2/3600 8.7/3600
Rated Power (HPIIPm) 9.8/3600 10.3/3600 112/3600 11.8/3600
Rated Speed (rpm)   3000/3600
Lowest rotation speed at zero loed   1300
Lubricating system   Pressure splashad Pressure splashad Pressure splashad



A single-cylinder, air-cooled diesel generator typically refers to a generator set that is powered by a single-cylinder diesel engine and utilizes air cooling for heat dissipation. These generators are commonly used in situations where a reliable source of electricity is needed, such as during power outages or in remote locations where grid power is not available.

Here are some key characteristics and considerations of single-cylinder, air-cooled diesel generators:

  1. Power Output: The power output of these generators can vary depending on the specific model and engine size. They are available in a range of power ratings, typically starting from around 2 kilowatts (kW) and going up to 10 kW or more.

  2. Compact and Portable: Single-cylinder, air-cooled diesel generators are often designed to be compact and portable, making them suitable for mobile or temporary power needs. They are commonly used for camping, recreational vehicles (RVs), small construction sites, and other similar applications.

  3. Fuel Efficiency: Diesel engines are generally known for their fuel efficiency and can provide longer running times compared to gasoline-powered generators. This can be particularly beneficial in situations where extended operation is required.

  4. Durability and Reliability: Diesel engines are known for their robustness and durability, making them suitable for continuous operation and heavy-duty applications. They are designed to withstand high loads and have a longer lifespan compared to gasoline engines.

  5. Air Cooling: Air-cooled generators use air circulation to dissipate heat generated by the engine. They do not require a separate cooling system, such as a radiator or liquid cooling, which can simplify maintenance and reduce the risk of coolant leaks.

  6. Noise Level: Single-cylinder diesel generators tend to produce more noise compared to larger multi-cylinder models. However, advancements in technology have led to quieter designs, and many generators feature noise reduction measures to minimize the sound output.

When selecting a single-cylinder, air-cooled diesel generator, it's important to consider your power requirements, the intended application, and any specific features you may need, such as electric start, automatic voltage regulation (AVR), or multiple outlets. Additionally, regular maintenance and following the manufacturer's guidelines are crucial to ensure optimal performance and longevity of the generator.




4KW 3600RPM Single Cylinder Air Cooled Engine Recoil / Electric Starter 0
