Highlight:
5hp air cooled diesel engine get173f
, single cylinder 5hp air cooled diesel engine
, vertical 5hp air cooled diesel engine
Type: |
Single Cylinder, Vertical, Four-stroke, Direct Injection, Air-cooled |
Borexstroke: |
73x59mm, 78x62mm, 86x72mm |
Displacement: |
247ml, 296ml, 418ml |
Compression Ratio: |
20:01, 20:01, 19:01 |
Rated Power(kw/rpm): |
3.5/3000-3.8/3600，3.68/3000-4/3600，5.7/3000-6.3/3600 |
Rated Power(hp/rpm): |
4.8/3000-5.2/3600, 5.0/3000-5.4/3600, 7.8/3000-8.6/3600 |
Rated Speed(rpm): |
3000/3600 |
Lowest Rotation Speed At Zero Load: |
≤1300r/min |
Lubricating System: |
Pressure Splashed |
Starting System: |
Recoil Start/electric Starter |
Rotation Direction(face To The Output Axle ): |
Anticlockwise |
Fuel Type: |
0#(summer)-10#(winter)-35#(chillness) Diesel |
Fuel Tank Capacity: |
2.5L 3.5L 5.5L |
Fuel Consumption/related Rotation Speed (g/kw.h/r/min): |
280.2/3000-288.3/3600, 276.1/3000-285.6/3600, 275.1/3000-281.5/3600 |
Lube Oil Type: |
CD Grade Or SAE 10W-30, 15W-40 |
Lube Oil Capacity: |
0.75L 1.1L 1.65L |
Starting Motor Capacity: |
12V 0.8KW |
Charging Generator Capacity: |
12V 8.3A |
Battery Capacity: |
12V 22Ah/ 12V 22Ah/ 12V 30Ah |
Overall Dimension(LxWxH): |
420x400x455mm, 480x460x510mm, 500x460x545mm |
Dry Weight: |
28kg, 32kg, 48kg |

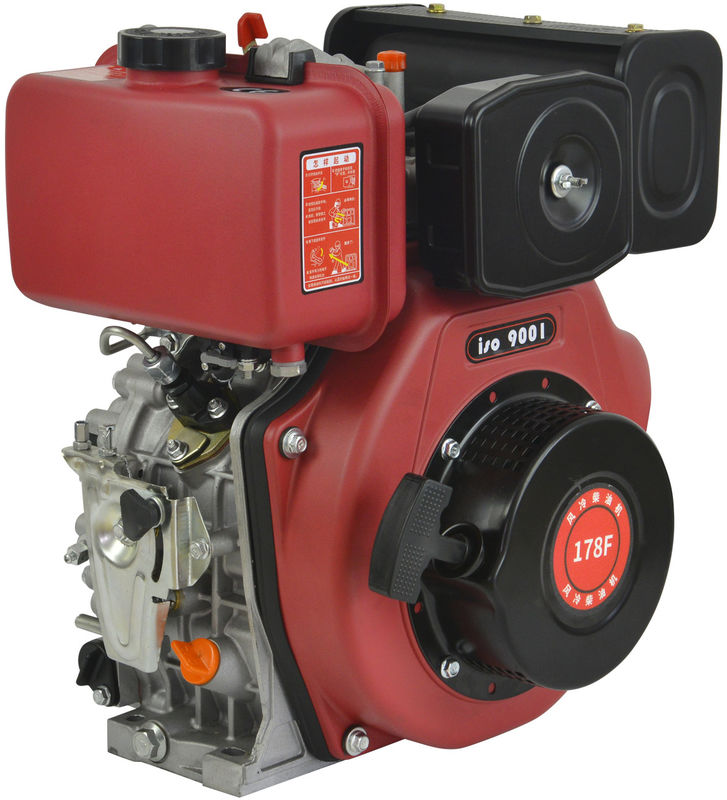

Single Cylinder 5hp Air Cooled Diesel Engine GET173F GET178F GET186FA
Single Cylinder 5 Hp Air Cooled Diesel Engine GET173F GET178F GET186FA
The engine models you mentioned, GET173F, GET178F, and GET186FA, are examples of single-cylinder, air-cooled diesel engines. These engines are commonly used in various applications such as small generators, water pumps, construction equipment, and agricultural machinery. Here are some key features and specifications of these engines:
-
GET173F Single Cylinder Air Cooled Diesel Engine:
- Displacement: Typically around 242 cc (cubic centimeters)
- Power Output: Can range from 4 to 6 horsepower (hp)
- Fuel Type: Diesel
- Cooling System: Air-cooled
- Starting Method: Manual or electric start options may be available
- Application: Suitable for smaller power requirements, such as portable generators and lightweight machinery.
-
GET178F Single Cylinder Air Cooled Diesel Engine:
- Displacement: Usually around 296 cc
- Power Output: Typically ranges from 6 to 9 hp
- Fuel Type: Diesel
- Cooling System: Air-cooled
- Starting Method: Manual or electric start options may be available
- Application: Suitable for medium-sized power needs, including small pumps, compact machinery, and portable generators.
-
GET186FA Single Cylinder Air Cooled Diesel Engine:
- Displacement: Generally around 406 cc
- Power Output: Typically ranges from 10 to 13 hp
- Fuel Type: Diesel
- Cooling System: Air-cooled
- Starting Method: Manual or electric start options may be available
- Application: Suitable for higher power requirements, including larger generators, construction equipment, and agricultural machinery.
| Model |
GET188F |
GET190F |
GET192F |
GET195F |
| Type |
Single cylinder, vertical, four-stroke, direct injection, air-cooled |
Single cylinder, vertical, four-stroke, direct injection, air-cooled |
Single cylinder, vertical, four-stroke, direct injection, air-cooled |
Single cylinder, vertical, four-stroke, direct injection, air-cooled |
| Bore*Stroke |
88.75*90mm |
75*77mm |
92*75mm |
95*75mm |
| Displacement |
19:01cc |
19:01cc |
19:01cc |
19:01cc |
| Compression Ratio |
6.7/3000 |
7.8/3000 |
6.5/3000 |
8.1/3000 |
| Rated Power (KWipm) |
7.2/3600 |
7.3/3600 |
8.2/3600 |
8.7/3600 |
| Rated Power (HPIIPm) |
9.8/3600 |
10.3/3600 |
112/3600 |
11.8/3600 |
| Rated Speed (rpm) |
|
3000/3600 |
| Lowest rotation speed at zero loed |
|
1300 |
| Lubricating system |
|
Pressure splashad |
Pressure splashad |
Pressure splashad
|
These engines are designed for reliability, durability, and ease of maintenance. They are known for their fuel efficiency, long lifespan, and ability to handle heavy-duty applications. It's important to note that specific features and specifications may vary depending on the manufacturer and model of the engine. Always refer to the manufacturer's documentation or consult with a knowledgeable professional for detailed information about a particular engine model.
