GET186FA GET192F Diesel Engine Pumps 2.8kw-8.5kw Diesel Water Pump

Product Details

Place of Origin: China

Brand Name: GET

Certification: ISO CE

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Delivery Time: 15-20 workdays

Payment Terms: LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            8.5kw diesel water pump, diesel engine pumps 2.8kw, get192f diesel engine pumps


Type:	Diesel Water Pump	Suction/discharger Port Diameter Mm(inch):	50(2'). 80(3'). 100(4'). 150(6')
Discharge Capacity（m³/h):	30 40 110 150	Total Head Lift:	25m 26m 22m 20m
Self-priming Time (s/4m):	80 120 180 180	Max Suction Head:	8m 8m 8m 6m
Rotation Speed (r/min):	3600	Noise Level Db(A)/7m):	85
Overall Dimension(mm):	510x455x640. 560x455x655. 650x470x700. 770x574x785	Dry Weight:	44kg 50kg 71kg 95kg
Engine Model:	GET173F GET178F GET186FA GET192F	Rated Power:	2.8kw 4kw 6.3kw 8.5kw
Fuel Consumption G/kw.h:	288 285 281 281	Displacement (cm³):	247 296 418 498
Starter System:	Recoil Starter	Fuel Tank Capacity:	13.5L
Continuous Working Period:	10hr 10hr 8hr 8hr

Type:	Diesel Water Pump
Suction/discharger Port Diameter Mm(inch):	50(2'). 80(3'). 100(4'). 150(6')
Discharge Capacity（m³/h):	30 40 110 150
Total Head Lift:	25m 26m 22m 20m
Self-priming Time (s/4m):	80 120 180 180
Max Suction Head:	8m 8m 8m 6m
Rotation Speed (r/min):	3600
Noise Level Db(A)/7m):	85
Overall Dimension(mm):	510x455x640. 560x455x655. 650x470x700. 770x574x785
Dry Weight:	44kg 50kg 71kg 95kg
Engine Model:	GET173F GET178F GET186FA GET192F
Rated Power:	2.8kw 4kw 6.3kw 8.5kw
Fuel Consumption G/kw.h:	288 285 281 281
Displacement (cm³):	247 296 418 498
Starter System:	Recoil Starter
Fuel Tank Capacity:	13.5L
Continuous Working Period:	10hr 10hr 8hr 8hr

Description

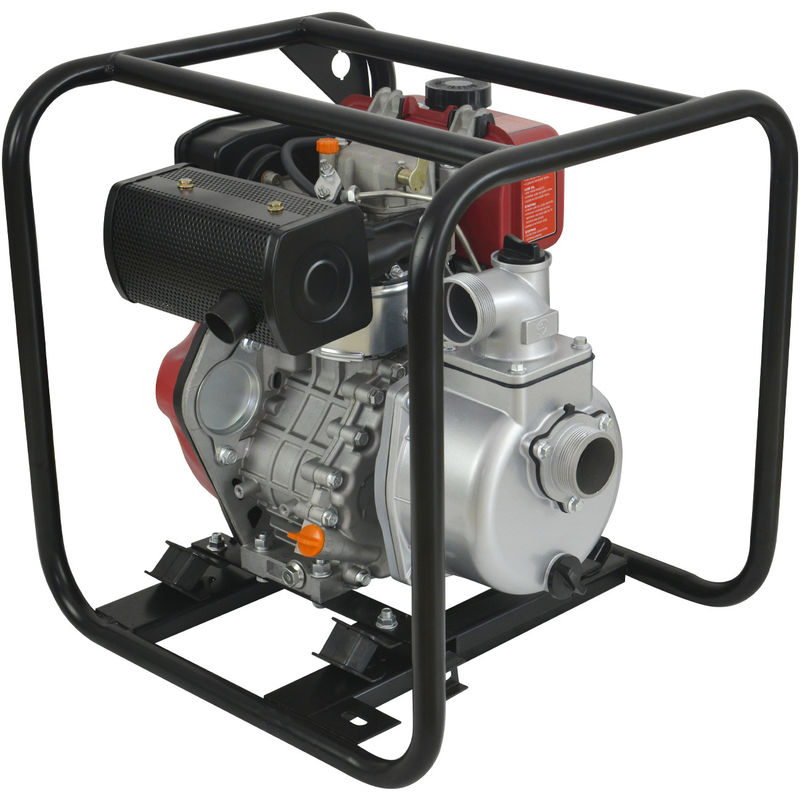

GET186FA GET192F Diesel Engine Pumps 2.8kw-8.5kw Diesel Water Pump

Industrial Diesel Engine Pumps Diesel Water Pump Diesel Fire Pump

A diesel fire pump is a specialized type of pump used specifically for fire protection systems. It is designed to provide a reliable and efficient water supply for firefighting applications in buildings, industrial facilities, and other installations.

A diesel water pump is a type of pump specifically designed for transferring or moving large volumes of water in various applications. These pumps are commonly used in construction sites, agriculture, mining, dewatering, irrigation, and other situations where a reliable and efficient water transfer is required.

Model	JBC6/10
Type	vacuum pump
Max.Flow(T/h)	48
MAX.Lift(m)	60
Rated Speed(rpm)	3600
Water Shot Height	35m
Engine	190F
Maximum Suction Height(m)	7
Self-priming Time(S)	20
Discharge Port Diameter(mm)	65
N.W/G.W(KG)	91/100
Dimensions(mm)
Loading Qty(20GP/40HQ)

Model	JBC6/15
Type	vacuum pump
Max.Flow(T/h)	54
MAX.Lift(m)	80
Rated Speed(rpm)	3600
Water Shot Height	35
Engine	192
Maximum Suction Height(m)	7
Self-priming Time(S)	20
Discharge Port Diameter(mm)	65
N.W/G.W(KG)	94/103
Dimensions(mm)
Loading Qty(20GP/40HQ)
