Product Details
Place of Origin: China
Brand Name: GET
Certification: ISO CE
Model Number: GETDP150
Document: Product Brochure PDF
Payment & Shipping Terms
Price: Negotiable
Delivery Time: 15-20 workdays
Payment Terms: LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Type: |
Diesel Engine Water Pump |
Suction/discharger Port Diameter Mm(inch): |
50(2'). 80(3'). 100(4'). 150(6') |
Discharge Capacity(m³/h): |
30 40 110 150 |
Total Head Lift: |
25m 26m 22m 20m |
Self-priming Time (s/4m): |
80 120 180 180 |
Max Suction Head: |
8m 8m 8m 6m |
Rotation Speed (r/min): |
3600 |
Noise Level Db(A)/7m): |
85 |
Overall Dimension(mm): |
510x455x640. 560x455x655. 650x470x700. 770x574x785 |
Dry Weight: |
44kg 50kg 71kg 95kg |
Engine Model: |
GET173F GET178F GET186FA GET192F |
Rated Power: |
2.8kw 4kw 6.3kw 8.5kw |
Fuel Consumption G/kw.h: |
288 285 281 281 |
Displacement (cm³): |
247 296 418 498 |
Starter System: |
Recoil Starter |
Fuel Tank Capacity: |
13.5L |
Continuous Working Period: |
10hr 10hr 8hr 8hr |
Type: |
Diesel Engine Water Pump |
Suction/discharger Port Diameter Mm(inch): |
50(2'). 80(3'). 100(4'). 150(6') |
Discharge Capacity(m³/h): |
30 40 110 150 |
Total Head Lift: |
25m 26m 22m 20m |
Self-priming Time (s/4m): |
80 120 180 180 |
Max Suction Head: |
8m 8m 8m 6m |
Rotation Speed (r/min): |
3600 |
Noise Level Db(A)/7m): |
85 |
Overall Dimension(mm): |
510x455x640. 560x455x655. 650x470x700. 770x574x785 |
Dry Weight: |
44kg 50kg 71kg 95kg |
Engine Model: |
GET173F GET178F GET186FA GET192F |
Rated Power: |
2.8kw 4kw 6.3kw 8.5kw |
Fuel Consumption G/kw.h: |
288 285 281 281 |
Displacement (cm³): |
247 296 418 498 |
Starter System: |
Recoil Starter |
Fuel Tank Capacity: |
13.5L |
Continuous Working Period: |
10hr 10hr 8hr 8hr |

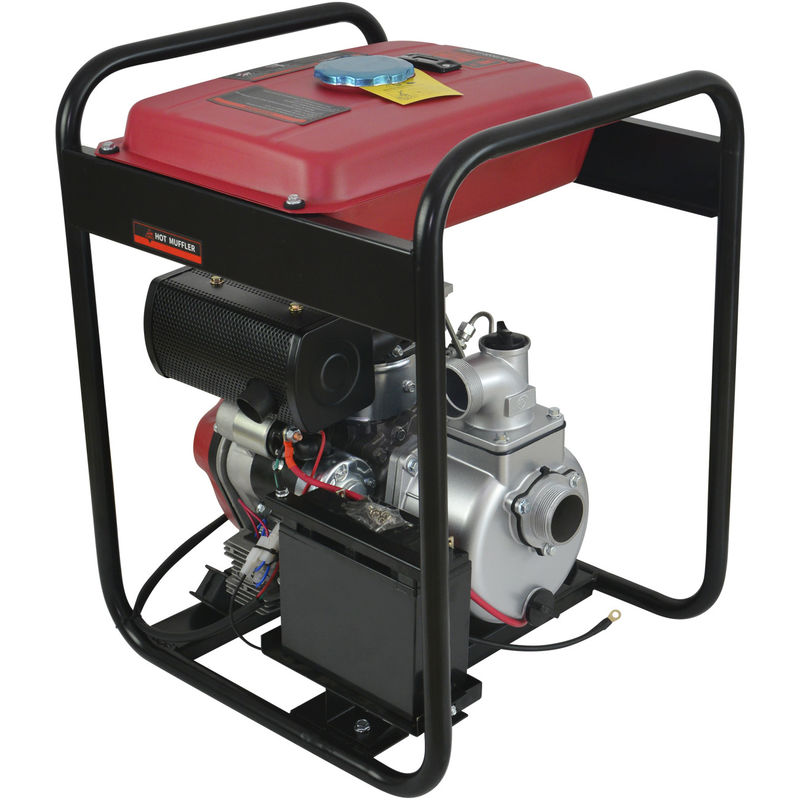

Industrial Diesel Engine Pumps Red Diesel Engine Water Pump
Industrial diesel engine pumps are widely used in various applications, including irrigation, construction, mining, oil and gas, and wastewater management. These pumps are designed to provide high-performance pumping capabilities in demanding industrial environments. Here are some key features and characteristics of industrial diesel engine pumps:
Diesel Engine Power: Industrial diesel engine pumps are equipped with powerful diesel engines that provide the necessary torque and horsepower to drive the pump system efficiently. Diesel engines are known for their robustness, durability, and ability to handle heavy-duty operations.
High Flow Rates: Industrial diesel engine pumps are designed to handle large volumes of fluid. They can deliver high flow rates, allowing for efficient transfer or movement of liquids over long distances or at significant elevations.
High Pressure Capability: In addition to high flow rates, industrial diesel engine pumps can generate substantial pressure to overcome resistance in the system. This makes them suitable for applications that require pumping liquids against high head pressures or through long pipelines.
Durable Construction: Industrial diesel engine pumps are typically constructed with durable materials such as cast iron, stainless steel, or other corrosion-resistant alloys. This ensures their ability to withstand harsh operating conditions, including exposure to abrasive fluids or corrosive environments.
Mobility and Portability: Many industrial diesel engine pumps are designed to be mobile or portable, allowing for easy transportation and flexibility in different job sites. They may have built-in handles, wheels, or trailers for convenient movement.
Industrial diesel engine pumps play a critical role in various industrial applications, providing reliable and efficient pumping solutions. Their powerful diesel engines, high flow rates, and durability make them well-suited for demanding environments where reliable fluid transfer is essential.
Model | JBC6/10 |
Type | vacuum pump |
Max.Flow(T/h) | 48 |
MAX.Lift(m) | 60 |
Rated Speed(rpm) | 3600 |
Water Shot Height | 35m |
Engine | 190F |
Maximum Suction Height(m) | 7 |
Self-priming Time(S) | 20 |
Discharge Port Diameter(mm) | 65 |
N.W/G.W(KG) | 91/100 |
Dimensions(mm) | |
Loading Qty(20GP/40HQ) | |
Model | JBC6/15 |
Type | vacuum pump |
Max.Flow(T/h) | 54 |
MAX.Lift(m) | 80 |
Rated Speed(rpm) | 3600 |
Water Shot Height | 35 |
Engine | 192 |
Maximum Suction Height(m) | 7 |
Self-priming Time(S) | 20 |
Discharge Port Diameter(mm) | 65 |
N.W/G.W(KG) | 94/103 |
Dimensions(mm) | |
Loading Qty(20GP/40HQ) |
