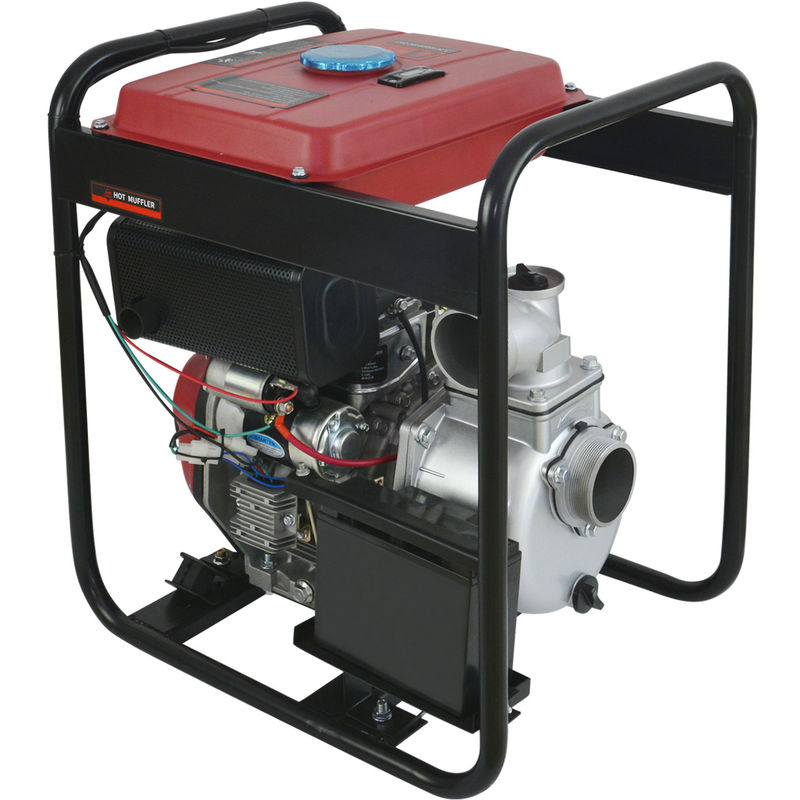

GET Diesel Engine Pumps 4 Inch 6 Inch Diesel Water Pump

Product Details

Place of Origin: China

Brand Name: GET

Certification: ISO CE

Document: Product Brochure PDF

Payment & Shipping Terms

Price: Negotiable

Delivery Time: 15-20 workdays

Payment Terms: LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            get diesel engine pumps, diesel engine pumps 4 inch, GET 6 inch diesel water pump


Type:	Diesel Water Pump	Suction/discharger Port Diameter Mm(inch):	50(2'). 80(3'). 100(4'). 150(6')
Discharge Capacity（m³/h):	30 40 110 150	Total Head Lift:	25m 26m 22m 20m
Self-priming Time (s/4m):	80 120 180 180	Max Suction Head:	8m 8m 8m 6m
Rotation Speed (r/min):	3600	Noise Level Db(A)/7m):	85
Overall Dimension(mm):	510x455x640. 560x455x655. 650x470x700. 770x574x785	Dry Weight:	44kg 50kg 71kg 95kg
Engine Model:	GET173F GET178F GET186FA GET192F	Rated Power:	2.8kw 4kw 6.3kw 8.5kw
Fuel Consumption G/kw.h:	288 285 281 281	Displacement (cm³):	247 296 418 498
Starter System:	Recoil Starter	Fuel Tank Capacity:	13.5L
Continuous Working Period:	10hr 10hr 8hr 8hr

Type:	Diesel Water Pump
Suction/discharger Port Diameter Mm(inch):	50(2'). 80(3'). 100(4'). 150(6')
Discharge Capacity（m³/h):	30 40 110 150
Total Head Lift:	25m 26m 22m 20m
Self-priming Time (s/4m):	80 120 180 180
Max Suction Head:	8m 8m 8m 6m
Rotation Speed (r/min):	3600
Noise Level Db(A)/7m):	85
Overall Dimension(mm):	510x455x640. 560x455x655. 650x470x700. 770x574x785
Dry Weight:	44kg 50kg 71kg 95kg
Engine Model:	GET173F GET178F GET186FA GET192F
Rated Power:	2.8kw 4kw 6.3kw 8.5kw
Fuel Consumption G/kw.h:	288 285 281 281
Displacement (cm³):	247 296 418 498
Starter System:	Recoil Starter
Fuel Tank Capacity:	13.5L
Continuous Working Period:	10hr 10hr 8hr 8hr

Description

GET Diesel Engine Pumps 4 Inch 6 Inch Diesel Water Pump

GET Diesel Engine Pumps Diesel Engine Fire Pump

Model	JBC6/10
Type	vacuum pump
Max.Flow(T/h)	48
MAX.Lift(m)	60
Rated Speed(rpm)	3600
Water Shot Height	35m
Engine	190F
Maximum Suction Height(m)	7
Self-priming Time(S)	20
Discharge Port Diameter(mm)	65
N.W/G.W(KG)	91/100
Dimensions(mm)
Loading Qty(20GP/40HQ)

Model	JBC6/15
Type	vacuum pump
Max.Flow(T/h)	54
MAX.Lift(m)	80
Rated Speed(rpm)	3600
Water Shot Height	35
Engine	192
Maximum Suction Height(m)	7
Self-priming Time(S)	20
Discharge Port Diameter(mm)	65
N.W/G.W(KG)	94/103
Dimensions(mm)
Loading Qty(20GP/40HQ)

Industrial diesel engine pumps are widely used in various applications, including irrigation, construction, mining, oil and gas, and wastewater management. These pumps are designed to provide high-performance pumping capabilities in demanding industrial environments. Here are some key features and characteristics of industrial diesel engine pumps:

Self-Priming Capability: Some industrial diesel engine pumps are equipped with self-priming capabilities. This means they can automatically prime themselves and create suction to draw the fluid into the pump, eliminating the need for manual priming or the use of external priming equipment.
Fuel Efficiency: Industrial diesel engine pumps are designed to be fuel-efficient, optimizing the consumption of diesel fuel during operation. This reduces operating costs, especially in applications where the pump runs for extended periods.
Control and Monitoring Systems: Many modern industrial diesel engine pumps come with advanced control and monitoring systems. These systems allow for remote operation, monitoring of pump performance, and integration with other control systems in the industrial process.
Safety Features: Industrial diesel engine pumps often incorporate safety features to protect the pump system and operators. These may include overload protection, low oil pressure shutdown, temperature monitoring, and emergency stop functions.
Maintenance and Serviceability: Industrial diesel engine pumps are designed for ease of maintenance and serviceability. They typically have accessible components for inspection, routine maintenance, and repairs. Manufacturers may also provide maintenance schedules and guidelines to ensure optimal performance and longevity of the pump

GET Diesel Engine Pumps 4 Inch 6 Inch Diesel Water Pump 0
