Highlight:
vertical diesel 4 stroke engine
, red single cylinder diesel engine
, single cylinder diesel engine vertical
Type: |
Single Cylinder, Vertical, Four-stroke, Direct Injection, Air-cooled |
Borexstroke: |
73x59mm, 78x62mm, 86x72mm |
Displacement: |
247ml, 296ml, 418ml |
Compression Ratio: |
20:01, 20:01, 19:01 |
Rated Power(kw/rpm): |
3.5/3000-3.8/3600，3.68/3000-4/3600，5.7/3000-6.3/3600 |
Rated Power(hp/rpm): |
4.8/3000-5.2/3600, 5.0/3000-5.4/3600, 7.8/3000-8.6/3600 |
Rated Speed(rpm): |
3000/3600 |
Lowest Rotation Speed At Zero Load: |
≤1300r/min |
Lubricating System: |
Pressure Splashed |
Starting System: |
Recoil Start/electric Starter |
Rotation Direction(face To The Output Axle ): |
Anticlockwise |
Fuel Type: |
0#(summer)-10#(winter)-35#(chillness) Diesel |
Fuel Tank Capacity: |
2.5L 3.5L 5.5L |
Fuel Consumption/related Rotation Speed (g/kw.h/r/min): |
280.2/3000-288.3/3600, 276.1/3000-285.6/3600, 275.1/3000-281.5/3600 |
Lube Oil Type: |
CD Grade Or SAE 10W-30, 15W-40 |
Lube Oil Capacity: |
0.75L 1.1L 1.65L |
Starting Motor Capacity: |
12V 0.8KW |
Charging Generator Capacity: |
12V 8.3A |
Battery Capacity: |
12V 22Ah/ 12V 22Ah/ 12V 30Ah |
Overall Dimension(LxWxH): |
420x400x455mm, 480x460x510mm, 500x460x545mm |
Dry Weight: |
28kg, 32kg, 48kg |

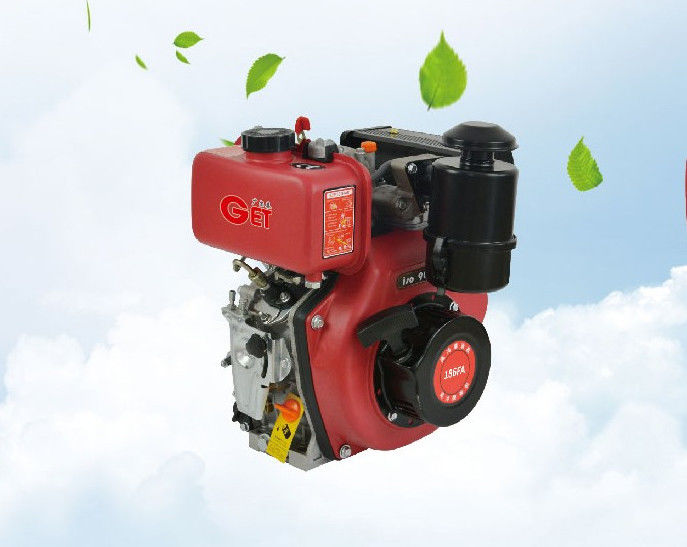

Red Single Cylinder Diesel Engine Vertical Diesel 4 Stroke Engine
4 Stroke Single Cylinder Diesel Engine One Cylinder Diesel Engine
The single-cylinder air-cooled diesel engine is a diesel engine that adopts air-cooled heat dissipation method and has the following characteristics:
Simple structure: Single-cylinder air-cooled diesel engines usually have a simple structure and consist of fewer parts. This makes them relatively lightweight and easy to maintain.
High reliability: Due to its simplified structure, the single-cylinder air-cooled diesel engine has high reliability. They do not rely on complex cooling systems, reducing points of failure and helping to improve stability and reliability.
High adaptability: The single-cylinder air-cooled diesel engine has strong adaptability and can work in various environmental conditions. Since it does not require an additional water cooling system, it can be used in areas with high temperatures, high humidity or limited water resources.
| Model |
GET173F |
GET186FA |
GET178F |
| Bore x Stroke mm |
296 x 418 |
- |
- |
| Displacement mL |
247 |
- |
- |
| Compression Ratio |
13.5/3000 |
3.68/3000 |
5.7/3000 |
| Rated Power KW/rpm |
4/3600 |
6.3/3600 |
3.8/3600 |
| Rated Power HP/rpm |
5.2/3600 |
5.4/3600 |
8.6/3600 |
| Rated Speed/≤r/min |
- |
- |
≤1300 |
| Lubricating system |
Pressure splashed |
- |
- |
| Starting system |
Recoil Start/electric starter |
- |
- |
| Rotation direction(face to the output axle) |
Anticlockwise |
- |
- |
| Fuel type |
2.5L,3.5L,5.5L diesel |
- |
- |
| Fuel consumption/related rotation speed(g/kW.h///min) |
288.3/3600,285.6/3600,281.5/3600 |
- |
- |
| Lube oil type |
CD grade or SAE 10W-30,15W-40,0.75,1.65L1.1 |
- |
- |
| Lube oil capacity |
12V,0.8kWV,kW |
- |
- |
| Starting motor capacity |
V,A12V8.3ACharging generator capacity |
- |
- |
