Highlight:
3600rpm one piston diesel engine
, 3600rpm single cylinder water cooled diesel engine
, one piston water cooled diesel engine
Type: |
Single Cylinder, Vertical, Four-stroke, Direct Injection, Air-cooled |
Borexstroke: |
73x59mm, 78x62mm, 86x72mm |
Displacement: |
247ml, 296ml, 418ml |
Compression Ratio: |
20:01, 20:01, 19:01 |
Rated Power(kw/rpm): |
3.5/3000-3.8/3600，3.68/3000-4/3600，5.7/3000-6.3/3600 |
Rated Power(hp/rpm): |
4.8/3000-5.2/3600, 5.0/3000-5.4/3600, 7.8/3000-8.6/3600 |
Rated Speed(rpm): |
3000/3600 |
Lowest Rotation Speed At Zero Load: |
≤1300r/min |
Lubricating System: |
Pressure Splashed |
Starting System: |
Recoil Start/electric Starter |
Rotation Direction(face To The Output Axle ): |
Anticlockwise |
Fuel Type: |
0#(summer)-10#(winter)-35#(chillness) Diesel |
Fuel Tank Capacity: |
2.5L 3.5L 5.5L |
Fuel Consumption/related Rotation Speed (g/kw.h/r/min): |
280.2/3000-288.3/3600, 276.1/3000-285.6/3600, 275.1/3000-281.5/3600 |
Lube Oil Type: |
CD Grade Or SAE 10W-30, 15W-40 |
Lube Oil Capacity: |
0.75L 1.1L 1.65L |
Starting Motor Capacity: |
12V 0.8KW |
Charging Generator Capacity: |
12V 8.3A |
Battery Capacity: |
12V 22Ah/ 12V 22Ah/ 12V 30Ah |
Overall Dimension(LxWxH): |
420x400x455mm, 480x460x510mm, 500x460x545mm |
Dry Weight: |
28kg, 32kg, 48kg |

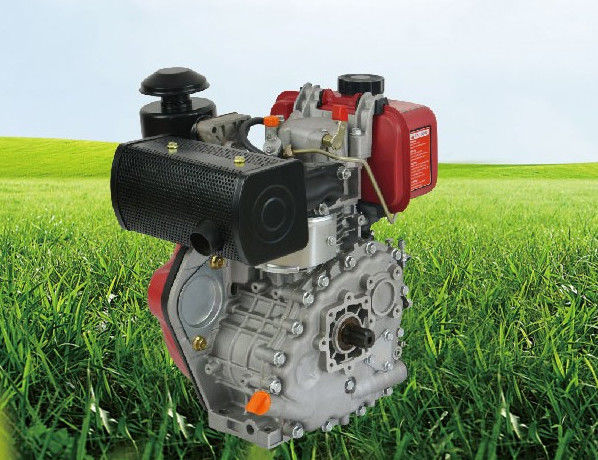

3600RPM One Piston Diesel Engine Single Cylinder Water Cooled Diesel Engine
Single Cylinder Water Cooled Diesel Engine Single Piston Diesel Engine
Due to its special design and characteristics, the single-cylinder air-cooled diesel engine is suitable for some specific application scenarios. The following are some common application scenarios of single-cylinder air-cooled diesel engines:
Ship auxiliary power: In the auxiliary power system of small ships or ships, single-cylinder air-cooled diesel engines are widely used. They are suitable for providing auxiliary power for ships, such as ship starting, navigation assistance, etc.
| Model |
GET173F |
GET186FA |
GET178F |
| Bore x Stroke mm |
296 x 418 |
- |
- |
| Displacement mL |
247 |
- |
- |
| Compression Ratio |
13.5/3000 |
3.68/3000 |
5.7/3000 |
| Rated Power KW/rpm |
4/3600 |
6.3/3600 |
3.8/3600 |
| Rated Power HP/rpm |
5.2/3600 |
5.4/3600 |
8.6/3600 |
| Rated Speed/≤r/min |
- |
- |
≤1300 |
| Lubricating system |
Pressure splashed |
- |
- |
| Starting system |
Recoil Start/electric starter |
- |
- |
| Rotation direction(face to the output axle) |
Anticlockwise |
- |
- |
| Fuel type |
2.5L,3.5L,5.5L diesel |
- |
- |
| Fuel consumption/related rotation speed(g/kW.h///min) |
288.3/3600,285.6/3600,281.5/3600 |
- |
- |
| Lube oil type |
CD grade or SAE 10W-30,15W-40,0.75,1.65L1.1 |
- |
- |
| Lube oil capacity |
12V,0.8kWV,kW |
- |
- |
| Starting motor capacity |
V,A12V8.3ACharging generator capacity |
- |
- |
Small construction site equipment: Single-cylinder air-cooled diesel engines can be used for equipment on small construction sites, such as mini excavators, road rollers, concrete mixers, etc. They can provide a stable supply of power to meet the needs of small construction sites.
