Highlight:

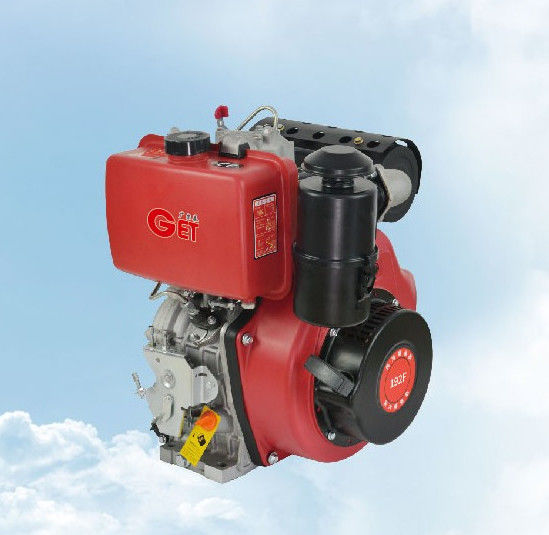

3600rpm single cylinder diesel engine
, 1300rpm turbo diesel motor
, 3600rpm turbo diesel motor
Type: |
Single Cylinder, Vertical, Four-stroke, Direct Injection, Air-cooled |
Borexstroke: |
73x59mm, 78x62mm, 86x72mm |
Displacement: |
247ml, 296ml, 418ml |
Compression Ratio: |
20:01, 20:01, 19:01 |
Rated Power(kw/rpm): |
3.5/3000-3.8/3600，3.68/3000-4/3600，5.7/3000-6.3/3600 |
Rated Power(hp/rpm): |
4.8/3000-5.2/3600, 5.0/3000-5.4/3600, 7.8/3000-8.6/3600 |
Rated Speed(rpm): |
3000/3600 |
Lowest Rotation Speed At Zero Load: |
≤1300r/min |
Lubricating System: |
Pressure Splashed |
Starting System: |
Recoil Start/electric Starter |
Rotation Direction(face To The Output Axle ): |
Anticlockwise |
Fuel Type: |
0#(summer)-10#(winter)-35#(chillness) Diesel |
Fuel Tank Capacity: |
2.5L 3.5L 5.5L |
Fuel Consumption/related Rotation Speed (g/kw.h/r/min): |
280.2/3000-288.3/3600, 276.1/3000-285.6/3600, 275.1/3000-281.5/3600 |
Lube Oil Type: |
CD Grade Or SAE 10W-30, 15W-40 |
Lube Oil Capacity: |
0.75L 1.1L 1.65L |
Starting Motor Capacity: |
12V 0.8KW |
Charging Generator Capacity: |
12V 8.3A |
Battery Capacity: |
12V 22Ah/ 12V 22Ah/ 12V 30Ah |
Overall Dimension(LxWxH): |
420x400x455mm, 480x460x510mm, 500x460x545mm |
Dry Weight: |
28kg, 32kg, 48kg |
1300RPM-3600RPM Single Cylinder Diesel Engine Turbo Diesel Motor
1 Cylinder Diesel Engine Single Cylinder Turbo Diesel Engine
Due to its special design and characteristics, the single-cylinder air-cooled diesel engine is suitable for some specific application scenarios. The following are some common application scenarios of single-cylinder air-cooled diesel engines:
Small agricultural equipment: Single-cylinder air-cooled diesel engines are often used in small agricultural equipment in the agricultural field, such as small tractors, agricultural transport vehicles, agricultural pumps, etc. Their smaller size and simplified structure make them suitable for light-load agricultural operations.
Light-duty generator sets: Since single-cylinder air-cooled diesel engines have low power loss and quick start-up characteristics, they are often used in small-scale generator sets, such as providing temporary power supply during camping, outdoor activities or emergency situations.
| Model |
GET173F |
GET186FA |
GET178F |
| Bore x Stroke mm |
296 x 418 |
- |
- |
| Displacement mL |
247 |
- |
- |
| Compression Ratio |
13.5/3000 |
3.68/3000 |
5.7/3000 |
| Rated Power KW/rpm |
4/3600 |
6.3/3600 |
3.8/3600 |
| Rated Power HP/rpm |
5.2/3600 |
5.4/3600 |
8.6/3600 |
| Rated Speed/≤r/min |
- |
- |
≤1300 |
| Lubricating system |
Pressure splashed |
- |
- |
| Starting system |
Recoil Start/electric starter |
- |
- |
| Rotation direction(face to the output axle) |
Anticlockwise |
- |
- |
| Fuel type |
2.5L,3.5L,5.5L diesel |
- |
- |
| Fuel consumption/related rotation speed(g/kW.h///min) |
288.3/3600,285.6/3600,281.5/3600 |
- |
- |
| Lube oil type |
CD grade or SAE 10W-30,15W-40,0.75,1.65L1.1 |
- |
- |
| Lube oil capacity |
12V,0.8kWV,kW |
- |
- |
| Starting motor capacity |
V,A12V8.3ACharging generator capacity |
- |
- |
