Highlight:
20hp single cylinder diesel engine
, 15hp single cylinder diesel engine
, 15hp electric starter diesel engine
Type: |
Single Cylinder, Vertical, Four-stroke, Direct Injection, Air-cooled |
Borexstroke: |
73x59mm, 78x62mm, 86x72mm |
Displacement: |
247ml, 296ml, 418ml |
Compression Ratio: |
20:01, 20:01, 19:01 |
Rated Power(kw/rpm): |
3.5/3000-3.8/3600，3.68/3000-4/3600，5.7/3000-6.3/3600 |
Rated Power(hp/rpm): |
4.8/3000-5.2/3600, 5.0/3000-5.4/3600, 7.8/3000-8.6/3600 |
Rated Speed(rpm): |
3000/3600 |
Lowest Rotation Speed At Zero Load: |
≤1300r/min |
Lubricating System: |
Pressure Splashed |
Starting System: |
Recoil Start/electric Starter |
Rotation Direction(face To The Output Axle ): |
Anticlockwise |
Fuel Type: |
0#(summer)-10#(winter)-35#(chillness) Diesel |
Fuel Tank Capacity: |
2.5L 3.5L 5.5L |
Fuel Consumption/related Rotation Speed (g/kw.h/r/min): |
280.2/3000-288.3/3600, 276.1/3000-285.6/3600, 275.1/3000-281.5/3600 |
Lube Oil Type: |
CD Grade Or SAE 10W-30, 15W-40 |
Lube Oil Capacity: |
0.75L 1.1L 1.65L |
Starting Motor Capacity: |
12V 0.8KW |
Charging Generator Capacity: |
12V 8.3A |
Battery Capacity: |
12V 22Ah/ 12V 22Ah/ 12V 30Ah |
Overall Dimension(LxWxH): |
420x400x455mm, 480x460x510mm, 500x460x545mm |
Dry Weight: |
28kg, 32kg, 48kg |

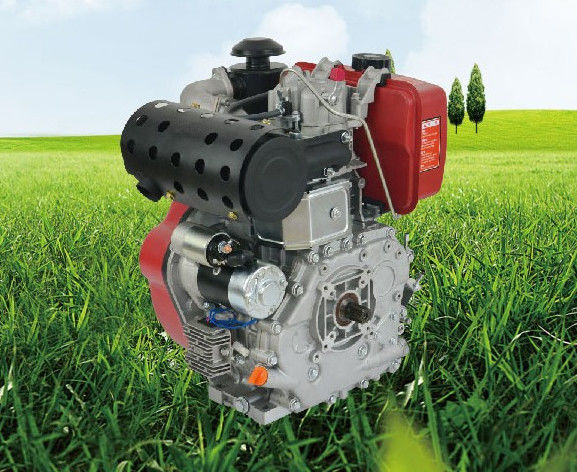

15Hp 20Hp Single Cylinder Diesel Engine Recoil Or Electric Starter Diesel Engine
GET 15 Hp 20 Hp Single Cylinder Diesel Engine Recoil Start Or Electric Starter
Due to its special design and characteristics, the single-cylinder air-cooled diesel engine is suitable for some specific application scenarios. The following are some common application scenarios of single-cylinder air-cooled diesel engines:
Light-duty generator sets: Since single-cylinder air-cooled diesel engines have low power loss and quick start-up characteristics, they are often used in small-scale generator sets, such as providing temporary power supply during camping, outdoor activities or emergency situations.
Ship auxiliary power: In the auxiliary power system of small ships or ships, single-cylinder air-cooled diesel engines are widely used. They are suitable for providing auxiliary power for ships, such as ship starting, navigation assistance, etc.
Communication equipment and mobile equipment: Since single-cylinder air-cooled diesel engines are small in size and have low power loss, they are often used to power communication equipment and mobile equipment. For example, in remote areas or places lacking power grid, single-cylinder air-cooled diesel engines can be used to provide power for communication base stations, mobile communication vehicles, mobile construction site equipment, etc.
| Model |
GET173F |
GET186FA |
GET178F |
| Bore x Stroke mm |
296 x 418 |
- |
- |
| Displacement mL |
247 |
- |
- |
| Compression Ratio |
13.5/3000 |
3.68/3000 |
5.7/3000 |
| Rated Power KW/rpm |
4/3600 |
6.3/3600 |
3.8/3600 |
| Rated Power HP/rpm |
5.2/3600 |
5.4/3600 |
8.6/3600 |
| Rated Speed/≤r/min |
- |
- |
≤1300 |
| Lubricating system |
Pressure splashed |
- |
- |
| Starting system |
Recoil Start/electric starter |
- |
- |
| Rotation direction(face to the output axle) |
Anticlockwise |
- |
- |
| Fuel type |
2.5L,3.5L,5.5L diesel |
- |
- |
| Fuel consumption/related rotation speed(g/kW.h///min) |
288.3/3600,285.6/3600,281.5/3600 |
- |
- |
| Lube oil type |
CD grade or SAE 10W-30,15W-40,0.75,1.65L1.1 |
- |
- |
| Lube oil capacity |
12V,0.8kWV,kW |
- |
- |
| Starting motor capacity |
V,A12V8.3ACharging generator capacity |
- |
- |
